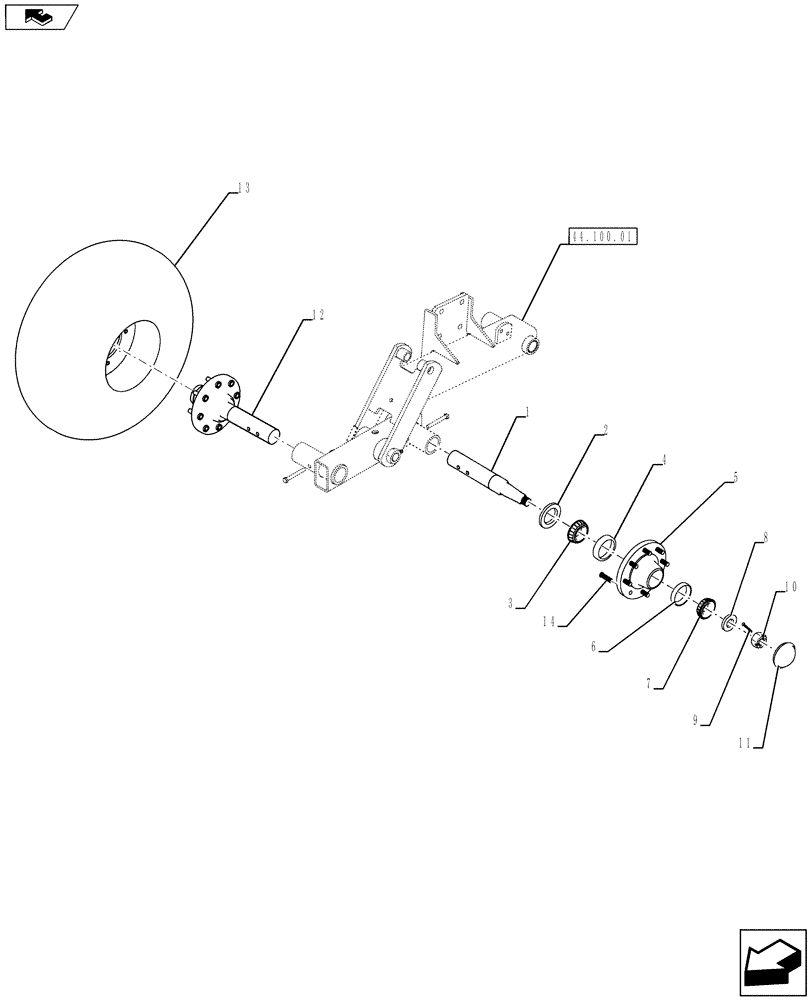

Запчасти Case IH 930 (44.100.02) - 42-47 MAIN FRAME TANDEM HUB ASSEMBLY (44) - WHEELS

1

28350805

STUB AXLE/STEERING S

1шт.

2

21932502

SEAL

1шт.

3

21872005

ROLLER BEARING,50 mm ID

Bearing Cone

1шт.

4

376463C1

BEARING CUP

Bearing Cup

1шт.

5

28250800

HUB ASSY.

Includes Bearing Cups, Wheel Bolts and Lube Fitting, Ref 4, 6, 14 & 17

1шт.

6

663558R1

BEARING CUP

1шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1шт.

8

17916100

WASHER

1шт.

9

14700600

COTTER PIN

1шт.

10

14051603

SLOTTED NUT

1шт.

11

84238032

DUST CAP

1шт.

12

28050885

STUB AXLE/STEERING S

Includes Ref#'s 1-11 & 14

1шт.

13

12.5L X 15 FI Tire Procure Locally

1шт.

14

557309R1

BOLT

8шт.

15

554480R1

WHEEL NUT

5/8 NF Lug Nuts (Not Shown)

8шт.

16

10110274

WHEEL

Steel 8-Lug Wheel (Not Shown)

1шт.

17

87645504

FITTING

Hub, Lube Fitting (Not Shown)

1шт.
