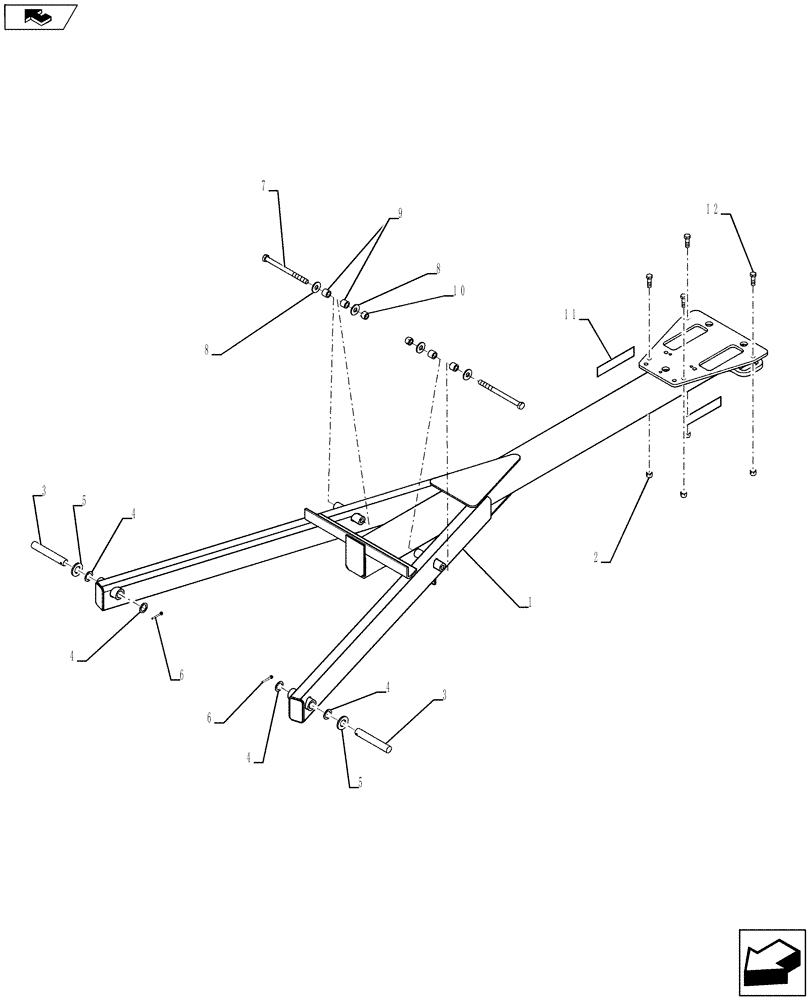

Запчасти Case IH 930 (39.100.06) - REAR HITCH FRAME (39) - FRAMES AND BALLASTING

1

84414360

HITCH

Includes Ref 11

1шт.

2

85700693

NUT,5/8" - 11, Gr C

4шт.

3

84414356

PIN

2шт.

4

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

4шт.

5

17421020

GROMMET

2шт.

6

88182

COTTER PIN,1/4" OD x 2" L

2шт.

7

9842687

BOLT

2шт.

8

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

4шт.

9

87397246

BUSHING,20.62mm ID x 31.75mm OD x 25.4mm L

4шт.

10

280375

NUT,3/4"-10, GC

2шт.

11

311864A1

REFLECTOR

2шт.

12

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

4шт.
