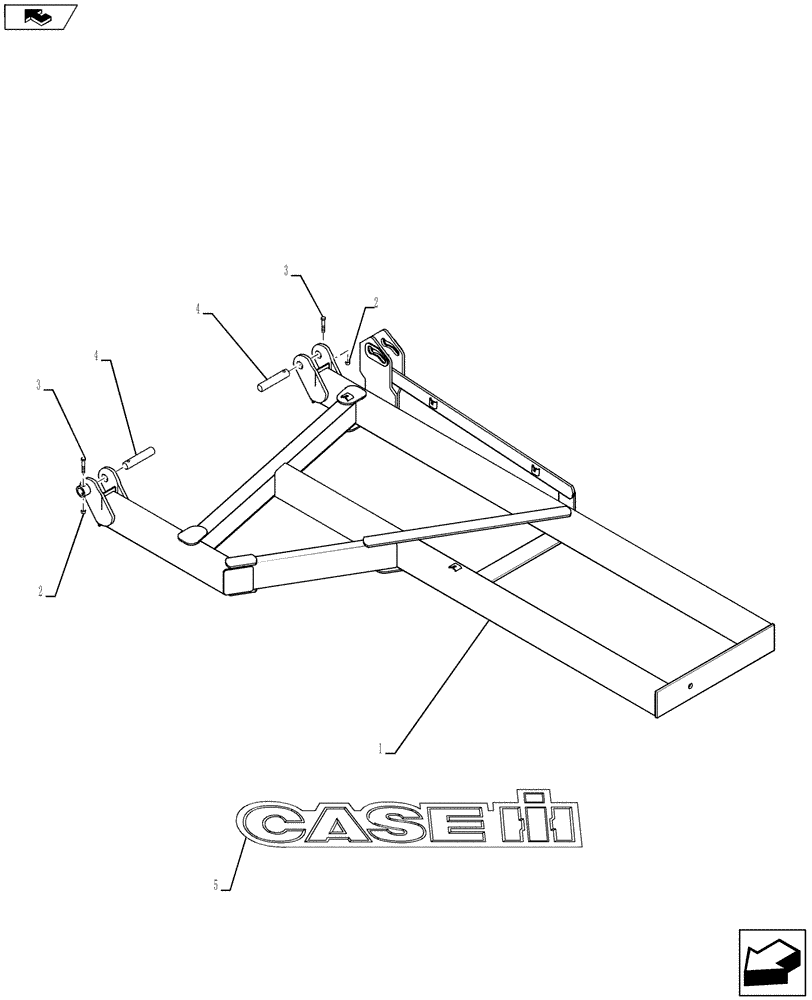

Запчасти Case IH 930 (39.100.05) - WING FRAME 27 - 37 (39) - FRAMES AND BALLASTING

1

84369322

FRAME

LH 37' W/Decal (Shown)

1шт.

1

84369323

FRAME

RH 37' W/Decal

1шт.

1

84369326

FRAME

LH 32' W/Decal

1шт.

1

84369327

FRAME

RH 32' W/Decal

1шт.

1

84369324

FRAME

LH 27' W/Decal

1шт.

1

84369325

FRAME

RH 27' W/Decal

1шт.

2

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

3

88871

NUT,1/2"-13, GC

2шт.

4

84310052

PIN

2шт.

5

87653276

DECAL

CASE Decal

1шт.

6

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

2шт.
