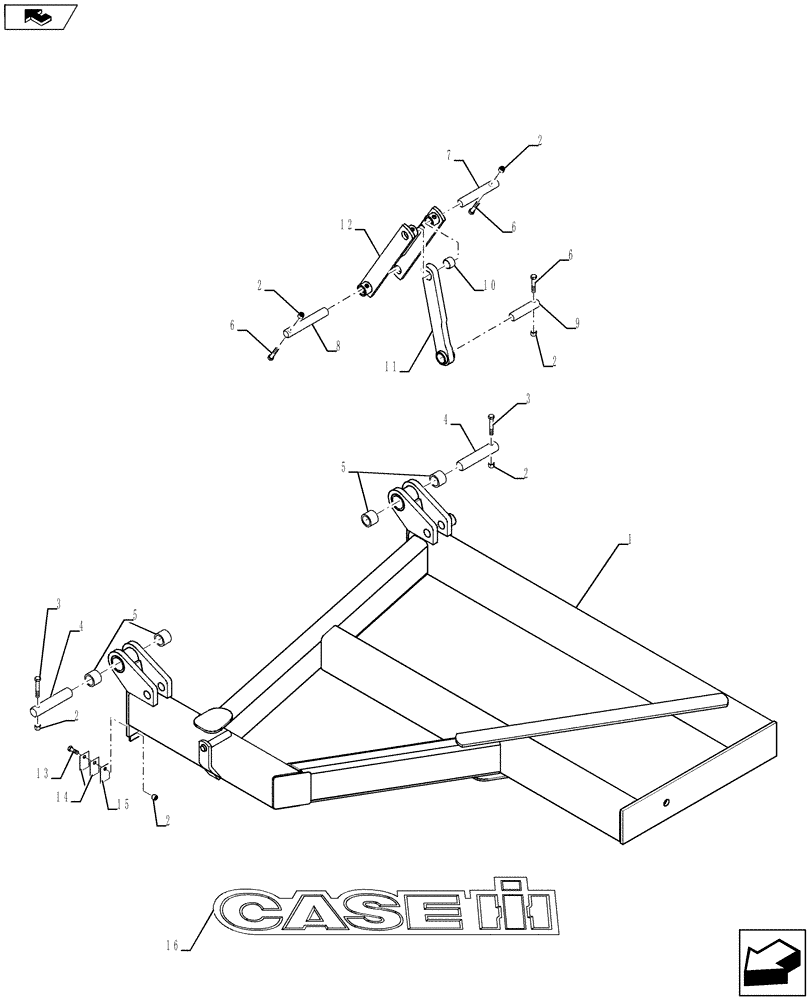

Запчасти Case IH 930 (39.100.04) - OUTER WING 42 - 47 (39) - FRAMES AND BALLASTING

1

84354916

FRAME

LH 47', Includes Decals & Bushings

1шт.

1

84354917

FRAME

RH 47', Includes Decals & Bushings

1шт.

1

84369320

FRAME

LH 42', Includes Decals & Bushings

1шт.

1

84369321

FRAME

RH 42', Includes Decals & Bushings

1шт.

2

88871

NUT,1/2"-13, GC

6шт.

3

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

4

84310052

PIN

2шт.

5

87503066

BUSHING,38.29mm ID x 50.93mm OD x 37.35mm L

4шт.

6

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

3шт.

7

84263249

PIN

1шт.

8

84370832

PIN

1шт.

9

84310128

PIN

1шт.

10

6636

BUSHING

1шт.

11

84257682

LINKAGE

Includes Bushing

1шт.

12

84257681

LINKAGE

1шт.

13

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

1шт.

14

04626120

SHIM

2шт.

15

04626130

SHIM

1шт.

16

87653276

DECAL

CASE Decal

1шт.
