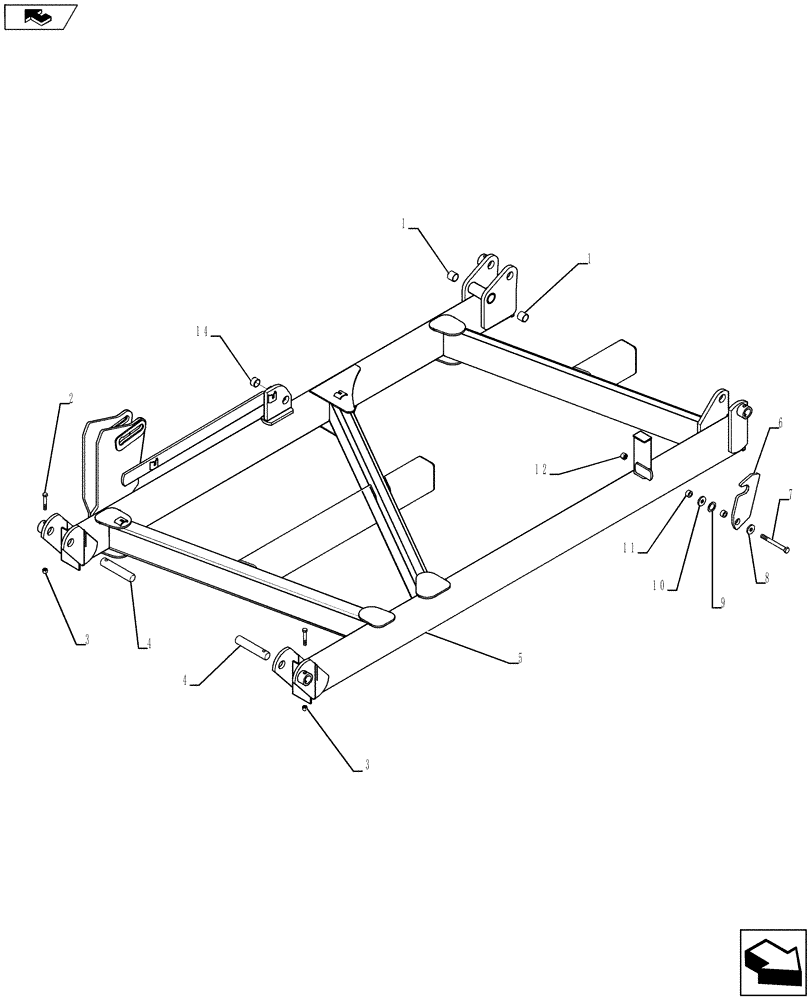

Запчасти Case IH 930 (39.100.03) - INNER WING 42 - 47 (39) - FRAMES AND BALLASTING

1

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

2шт.

2

87339

BOLT,Hex, 1/2" - 13 x 3", Gr 5

2шт.

3

88871

NUT,1/2"-13, GC

2шт.

4

84310052

PIN

2шт.

5

84354914

FRAME

LH Inner Wing Assembly (Pictured) Includes 1, 14

1шт.

5

84354915

FRAME

RH Inner Wing Assembly, Includes 1, 14

1шт.

6

06220130

BRACKET

1шт.

7

84009

BOLT

1шт.

8

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

9

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1шт.

10

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

1шт.

11

44006200

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

2шт.

12

85700693

NUT,5/8" - 11, Gr C

1шт.

13

86632584

WASHER,1.53" ID x 2.25" OD x 0.12" Thk

2шт.

14

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

Included In Ref 5

1шт.
