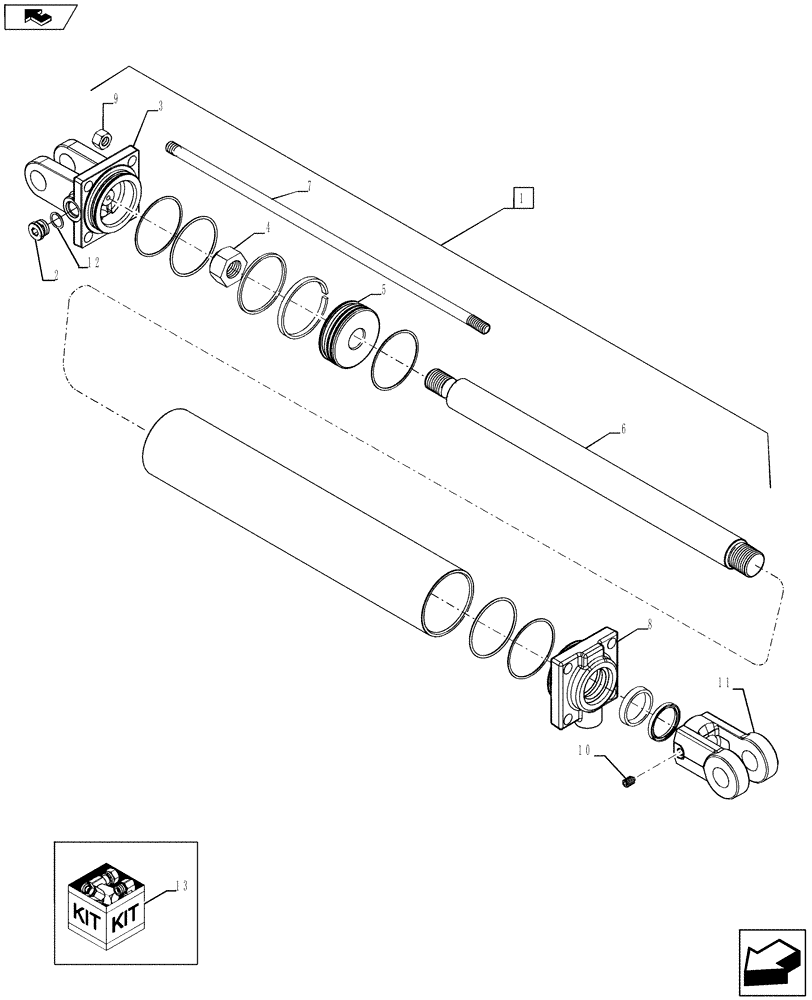

Запчасти Case IH 930 (35.100.06) - WING FOLD CYLINDER OUTER 42 - 47 MODELS (35) - HYDRAULIC SYSTEMS

1

84341604

CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

3.50" Bore X 24.00" Stroke, 47' Model

1шт.

1

84366455

CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

3.00" X 24.00", 42' Model

1шт.

2

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

3

87409446

HEAD

Cylinder 84341604

1шт.

3

84407290

CLEVIS

Cylinder 84366455

1шт.

4

87314800

LOCK NUT

1шт.

5

87409481

PISTON

Cylinder 84341604

1шт.

5

87635232

PISTON

Cylinder 84366455

1шт.

6

87582276

SHAFT

Cylinder 84341604

1шт.

6

84407293

ROD

Cylinder 84366455

1шт.

7

87409493

BOLT

Cylinder 84341604

4шт.

7

84155448

TIE-ROD

Cylinder 84366455

4шт.

8

87409417

HEAD

Cylinder 84341604

1шт.

8

8952

CYLINDER END CAP

Cylinder 84366455

1шт.

9

408

NUT,5/8" - 18, Gr 5

Cylinder 84341604

4шт.

9

280963

NUT,Nut, 1/2-20 GR 5 ZND

Cylinder 84366455

4шт.

10

84212867

SET SCREW

1шт.

11

84407278

CLEVIS

Cylinder 84341604

1шт.

11

84221842

CLEVIS

Cylinder 84366455

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

25833527

SEAL KIT

Cylinder 84341604

1шт.

13

25833007

SEAL KIT

Cylinder 84366455

1шт.
