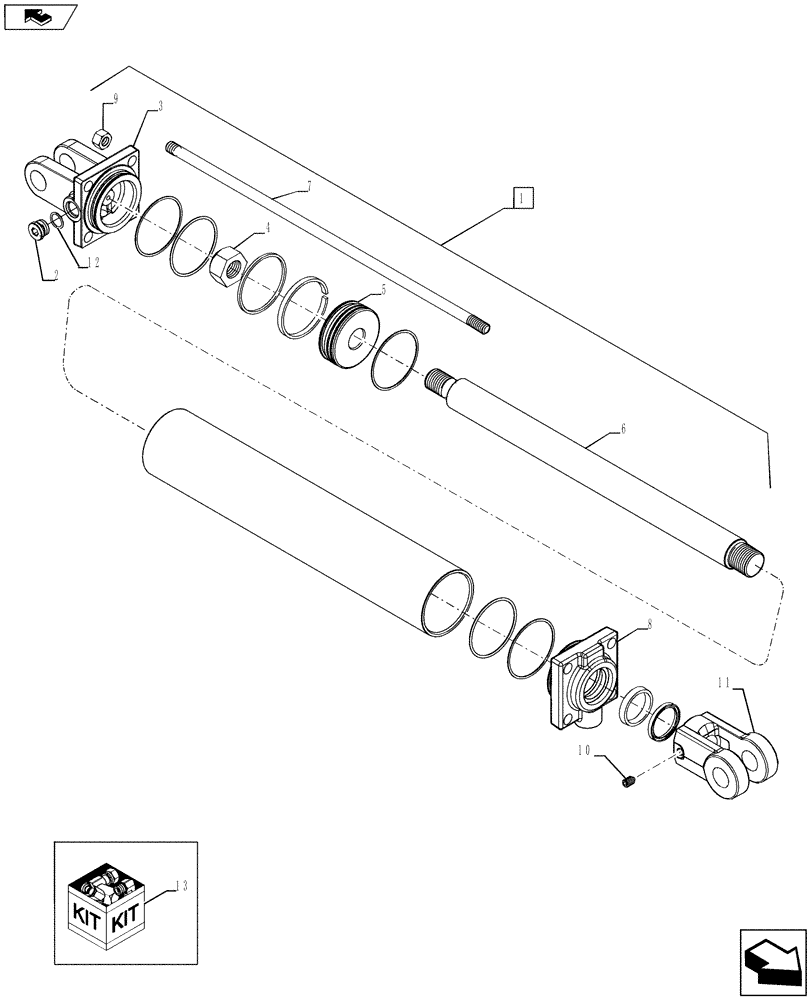

Запчасти Case IH 930 (35.100.04) - FRAME LIFT CYLINDERS (35) - HYDRAULIC SYSTEMS

1

84341603

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3.50" X 10.00", Rephase, Inner Cylinder, Main Frame

1шт.

1

84344027

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3.25" X 10.00", Rephase, Outer Cylinder, Wing Frame

1шт.

2

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

3

84407282

CLEVIS

For 84341603

1шт.

3

84407280

CLEVIS

For 84344027

1шт.

4

87314800

LOCK NUT

1шт.

5

87633992

PISTON

For 84341603

1шт.

5

87409468

PISTON

For 84344027

1шт.

6

84407292

ROD

1шт.

7

22606

THREADED TIE-ROD

4шт.

8

87410758

CAP

For 84341603

1шт.

8

87410757

CYLINDER END CAP

For 84344027

1шт.

9

408

NUT,5/8" - 18, Gr 5

4шт.

10

84212867

SET SCREW

1шт.

11

84221842

CLEVIS

1шт.

12

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

87409038

SEAL KIT

For 84341603

1шт.

13

87409037

SEAL KIT

For 84344027

1шт.
