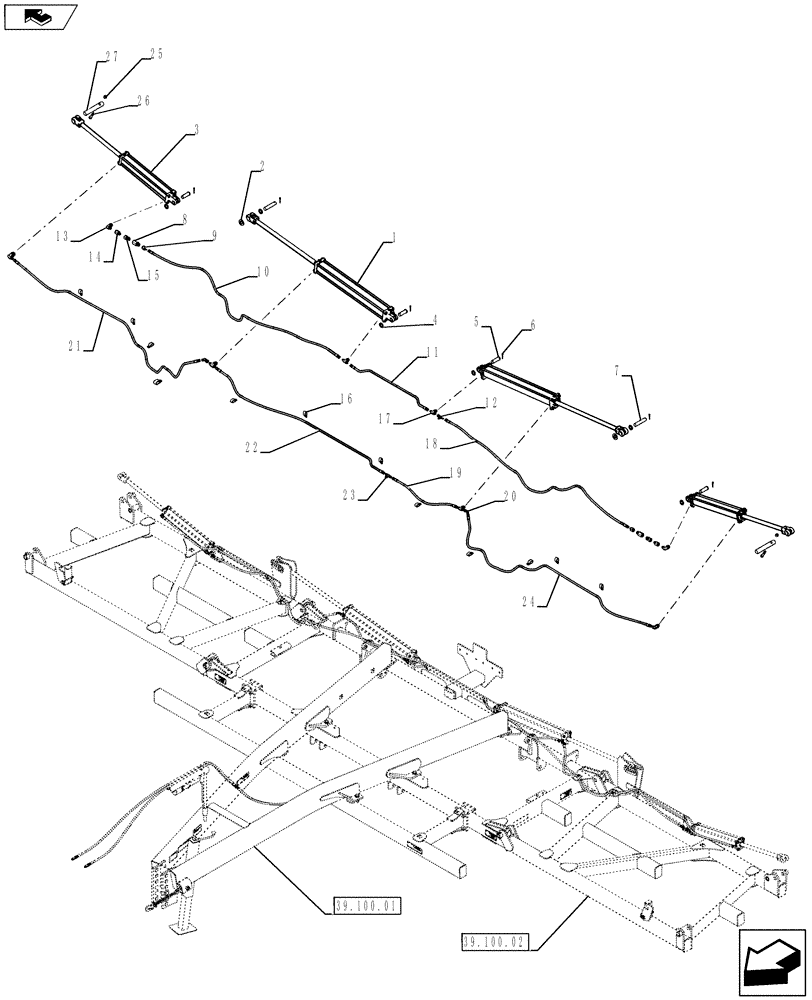

Запчасти Case IH 930 (35.100.03) - WING FOLD HYDRAULICS 42 - 47" MODEL (35) - HYDRAULIC SYSTEMS

1

84341605

CYLINDER,Double Acting, 38.1mm Rod, 914.4mm Stroke

4.00" X 36.00"

2шт.

2

17421020

GROMMET

2шт.

3

84341604

CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

47' Model, 3.50" X 24.00"

2шт.

3

84366455

CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

42' Model, 3.00" X 24.00"

2шт.

4

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

6шт.

5

84156993

PIN

4шт.

6

88182

COTTER PIN,1/4" OD x 2" L

6шт.

7

84349166

PIN

2шт.

8

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

9

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

10

1301350C2

HYDRAULIC HOSE

42' & 47'

1шт.

11

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

42' & 47'

1шт.

12

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

13

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

14

87411460

REDUCER

2шт.

15

25707534

ADAPTER

2шт.

16

22510700

HOSE CLAMP,15.86mm

12шт.

17

87331046

TEE,3/4" - 16 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

4шт.

18

1301350C2

HYDRAULIC HOSE

42' & 47'

1шт.

19

1270453C1

HYDRAULIC HOSE

42' & 47'

1шт.

20

86512959

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

2шт.

21

1301350C2

HYDRAULIC HOSE

42' & 47'

1шт.

22

1284368C1

HYDRAULIC HOSE

42' & 47'

1шт.

23

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

24

1301350C2

HYDRAULIC HOSE

42' & 47'

1шт.

25

88871

NUT,1/2"-13, GC

2шт.

26

87972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

2шт.

27

84263249

PIN

2шт.
