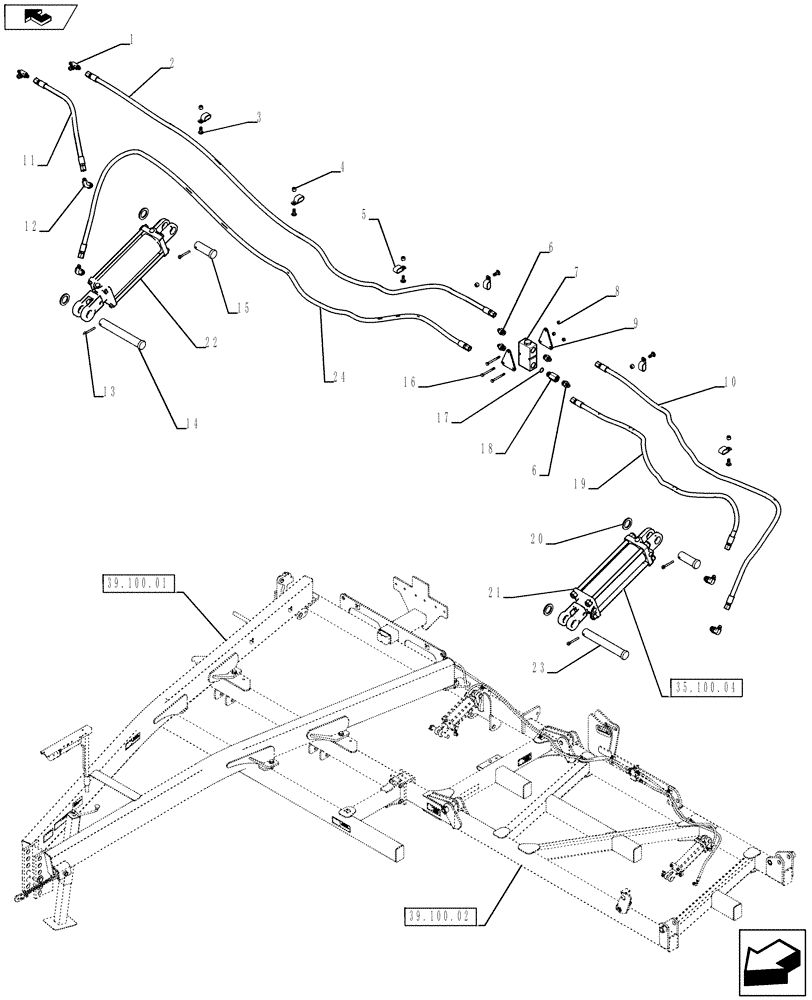

Запчасти Case IH 930 (35.100.02) - FRAME LIFT HYDRAULICS 47 MODEL (35) - HYDRAULIC SYSTEMS

1

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

2

1284368C1

HYDRAULIC HOSE

LH, 3/8" X 100"

1шт.

2

139655C2

HYDRAULIC HOSE

RH, 3/8" X 155"

1шт.

3

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

4

88902

NUT,3/8"-16

6шт.

5

22510700

HOSE CLAMP,15.86mm

6шт.

6

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

RH & LH

4шт.

7

298624A1

VALVE

RH & LH

1шт.

8

280129

NUT,1/4"-20

RH & LH

3шт.

9

87577920

PLATE

RH & LH

2шт.

10

1284315C1

HYDRAULIC HOSE

RH & LH, 3/8" X 65"

1шт.

11

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

LH, 3/8" X 21"

1шт.

11

813006C2

HYDRAULIC HOSE

RH, 3/8" X 85"

1шт.

12

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

RH & LH

4шт.

13

88182

COTTER PIN,1/4" OD x 2" L

4шт.

14

84339323

PIN

RH & LH

2шт.

15

84156993

PIN

RH & LH

2шт.

16

280566

BOLT,Hex, 1/4" - 20 x 2 3/4", Gr 5

RH & LH

3шт.

17

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

RH & LH

1шт.

18

25407502

CONTROL VALVE

RH & LH

1шт.

19

1285380C2

HYDRAULIC HOSE

LH, 3/8" X 50"

1шт.

19

810139C2

HYDRAULIC HOSE,9.53mm ID x 1397mm L, SAE 100R7

RH, 3/8" X 55"

1шт.

20

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

4шт.

21

84344027

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

Outer RH & LH, 3.25" X 10.00" Rephase

1шт.

22

84341603

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

Inner RH & LH, 3.50" X 10.00" Rephase

1шт.

23

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

RH & LH

1шт.

24

1284367C1

HYDRAULIC HOSE,9.53mm ID x 2415mm L

RH & LH, 3/8" X 95"

2шт.
