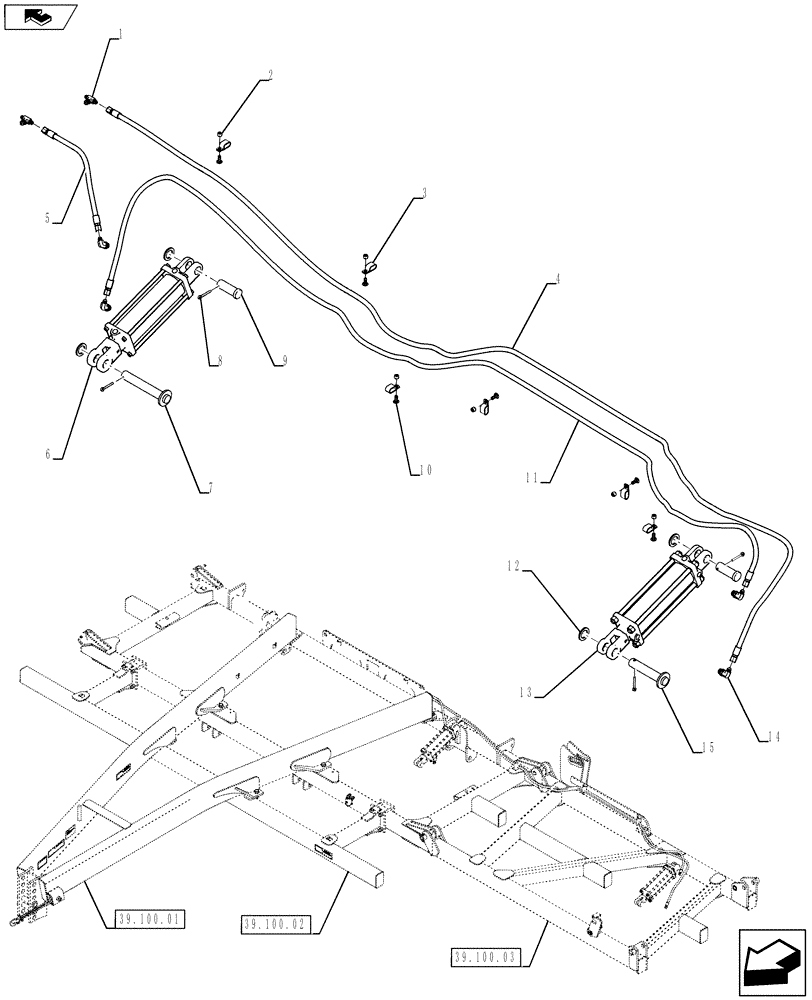

Запчасти Case IH 930 (35.100.02[01]) - FRAME LIFT HYDRAULICS 27-42 MODELS (35) - HYDRAULIC SYSTEMS

1

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

2

88902

NUT,3/8"-16

6шт.

3

22510700

HOSE CLAMP,15.86mm

6шт.

4

1284298C1

HYDRAULIC HOSE

42' Model LH, Hyd Hose Assy, 3/8" X 160" Coiled

1шт.

4

1284258C1

HYDRAULIC HOSE,9.53mm ID x 5715mm L

42' Model RH, Hyd Hose Assy, 3/8" X 225"

1шт.

4

1284329C1

HYDRAULIC HOSE

37' Model LH, Hyd Hose Assy 3/8" X 205"

1шт.

4

1284262C1

HYDRAULIC HOSE,9.53mm ID x 6985mm L

37' Model RH, Hyd Hose Assy, 3/8" X 275" Coiled

1шт.

4

435694A1

HYDRAULIC HOSE

32' Model LH, Hyd Hose Assy 3/8" X 190"

1шт.

4

139522C2

HOSE

32' Model RH, Hyd Hose Assy, 3/8" X 255"

1шт.

4

129782C2

HYDRAULIC HOSE

27' Model LH, Hyd Hose Assy 3/8" X 165" Coiled

1шт.

4

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

27' Model RH, Hyd Hose Assy 3/8" X 230" Coiled

1шт.

5

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

27' - 42' Model LH, Hyd Hose Assy, 3/8" X 21"

1шт.

5

813006C2

HYDRAULIC HOSE

27' - 42' Model RH, Hyd Hose Assy 3/8" X 85"

1шт.

6

84341603

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3.50" X 10" Rephase

1шт.

7

84339323

PIN

1шт.

8

88182

COTTER PIN,1/4" OD x 2" L

4шт.

9

84156993

PIN

2шт.

10

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

6шт.

11

139655C2

HYDRAULIC HOSE

42' Model LH & RH, Hyd Hose Assy 3/8" X 155" Coiled

1шт.

11

129765C2

HYDRAULIC HOSE

37' Model LH & RH, Hyd Hose Assy 3/8" X 200" Coiled

1шт.

11

129759C2

HYDRAULIC HOSE

32' Model LH & RH, Hyd Hose Assy 3/8" X 180" Coiled

1шт.

11

1284298C1

HYDRAULIC HOSE

27' Model LH & RH, Hyd Hose Assy 3/8" X 160" Coiled

1шт.

12

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

4шт.

13

84344027

CYLINDER,Double Acting, 31.75mm Rod, 254mm Stroke

3.25" X 10" Rephase

1шт.

14

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

15

14820445

CLEVIS PIN,31.75mm OD x 160.27mm L

1шт.
