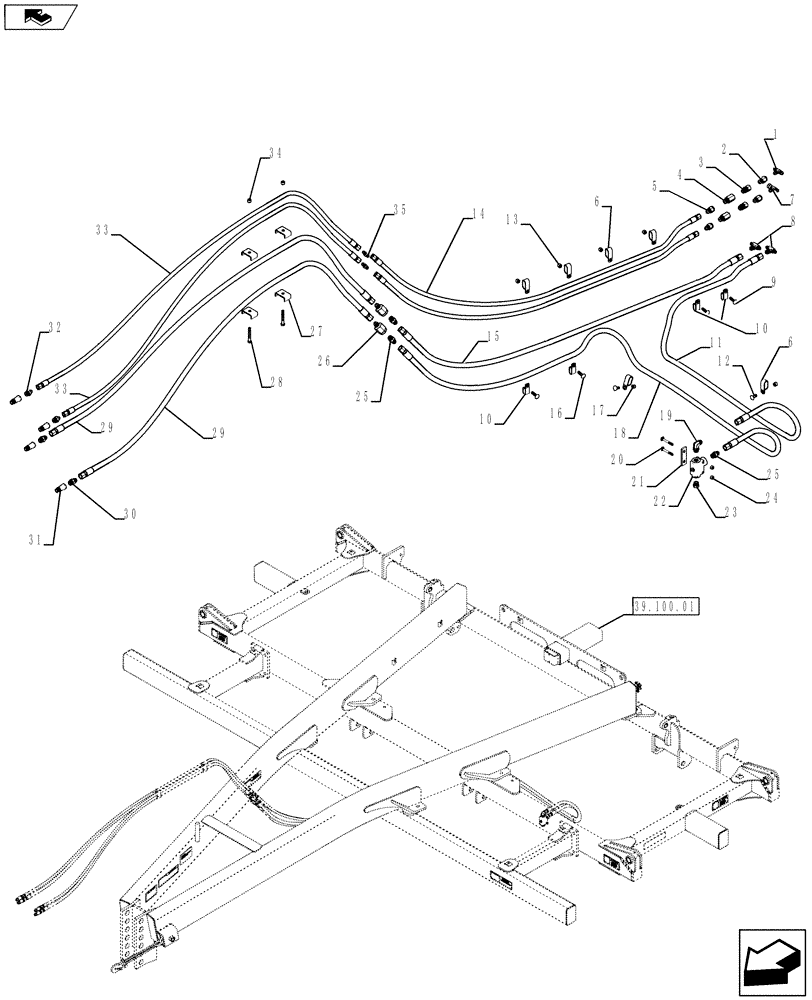

Запчасти Case IH 930 (35.100.01) - MAIN/PULL FRAME HYDRAULICS 27 - 47 MODELS (35) - HYDRAULIC SYSTEMS

1

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

2

87411460

REDUCER

2шт.

3

25707534

ADAPTER

2шт.

4

25405013

CONTROL VALVE,3/4" - 16 ORB x 3/4" - 16 JIC

2шт.

5

86624135

REDUCER,37 Degree, 3/4"-16, Fem x 9/16"-18 Male

2шт.

6

22510710

HOSE CLAMP

6шт.

7

129274

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

8

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

9

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

4шт.

10

22510700

HOSE CLAMP,15.86mm

4шт.

11

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

1шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

2шт.

13

88902

NUT,3/8"-16

4шт.

14

139519C2

HYDRAULIC HOSE

2шт.

15

91207C1

HYDRAULIC HOSE,12.70 mm ID x 3300.00 mm, SAE 100R1

1шт.

16

9706752

CARRIAGE BOLT,3/8" - 16 x 1-1/2", Gr 5

4шт.

17

88902

NUT,3/8"-16

6шт.

18

1337376C1

HYDRAULIC HOSE

1шт.

19

128830

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 ORB

1шт.

20

280622

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

2шт.

21

84278123

SPACER

1шт.

22

396150A1

VALVE, CONTROL

1шт.

23

214389

PLUG,3/4" - 16 ORB

1шт.

24

280736

NUT,5/16"-18, GC

2шт.

25

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

3шт.

26

84269593

FILTER

2шт.

27

06200125

HOSE CLAMP

4шт.

28

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

2шт.

29

91240C1

HOSE,12.70 mm ID x 3050.00 mm, SAE 100R1

2шт.

30

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

2шт.

31

25705041

COUPLING

4шт.

32

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

2шт.

33

1301350C2

HYDRAULIC HOSE

2шт.

34

88902

NUT,3/8"-16

2шт.

35

128821

UNION,9/16" - 18 JIC x 9/16" - 18 JIC

2шт.
