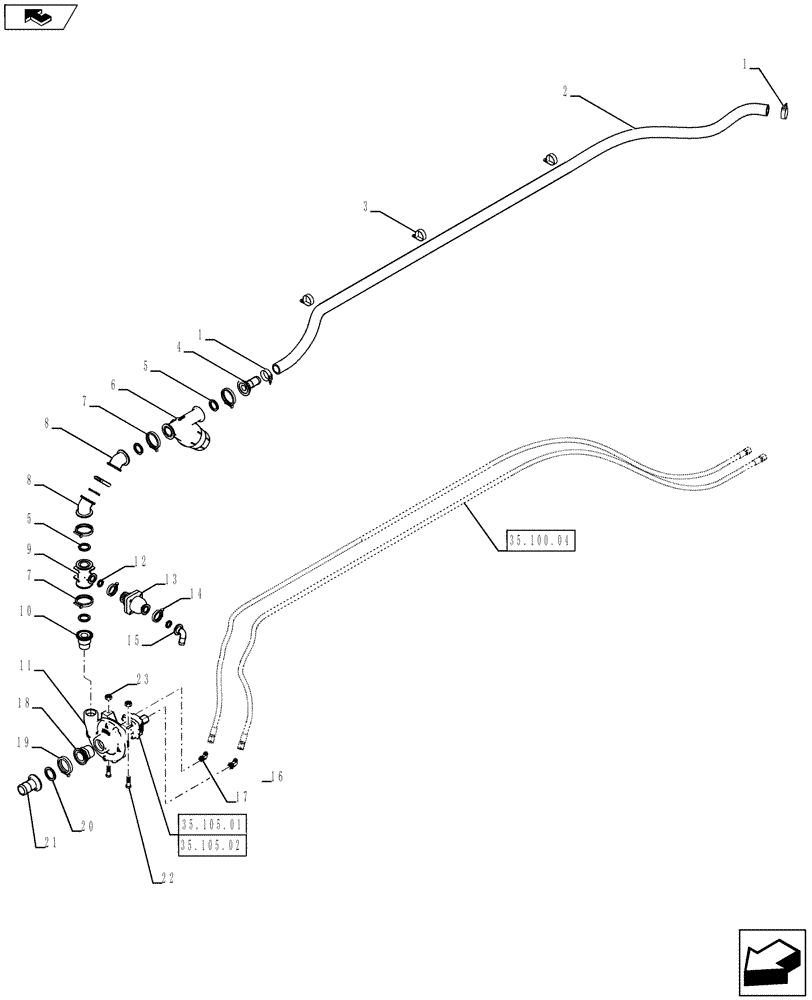

Запчасти Case IH 920 (78.110.09) - LIQUID FERTILIZER PUMP PLUMBING/HYDRAULICS (78) - SPRAYING

1

84481942

HOSE CLAMP,1-1/2"

1.93" T-Bolt Clamp

2шт.

2

84487486

HOSE

Hose, 1.5" Dia. X 13', EPDM

1шт.

3

87552805

CLAMP,50.8mm, Coat, 10.3mm Bolt Hole, P Type

2.00" Insulated Clamp

3шт.

4

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

1шт.

5

BN303204

GASKET,1-1/2" EPDM Gasket

5шт.

6

84515107

BANJO FITTING,2" Manifold Y Strainer w/50 Mesh Screen

45 Degree "Y" Fitting

1шт.

7

BN303199

CLAMP,2" Flange

2.00" Flange Clamp

5шт.

8

86984086

COUPLING

45 Degree Coupler

2шт.

9

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

10

22244

FITTING

1шт.

11

84396847

HYDRAULIC PUMP

1шт.

12

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

2шт.

13

87268172

VALVE

1шт.

14

BN303203

CLAMP,1" Flange

1.00" Flange Clamp

2шт.

15

47452333

FITTING,1" Flange x 3/4" 90 Degree Hose Barb Elbow

90 Degree

1шт.

16

9610689

ELBOW,45 Degree, 3/4"-16 x 7/8"-14, O-Ring

1шт.

17

216797

45 ELBOW,45 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

1шт.

18

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

1шт.

19

BN313773

CLAMP,2" Full Port

2.00" Flange Clamp

1шт.

20

BN313772

GASKET,2" Full Port, EPDM

1шт.

21

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

1шт.

22

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

23

88902

NUT,3/8"-16

2шт.
