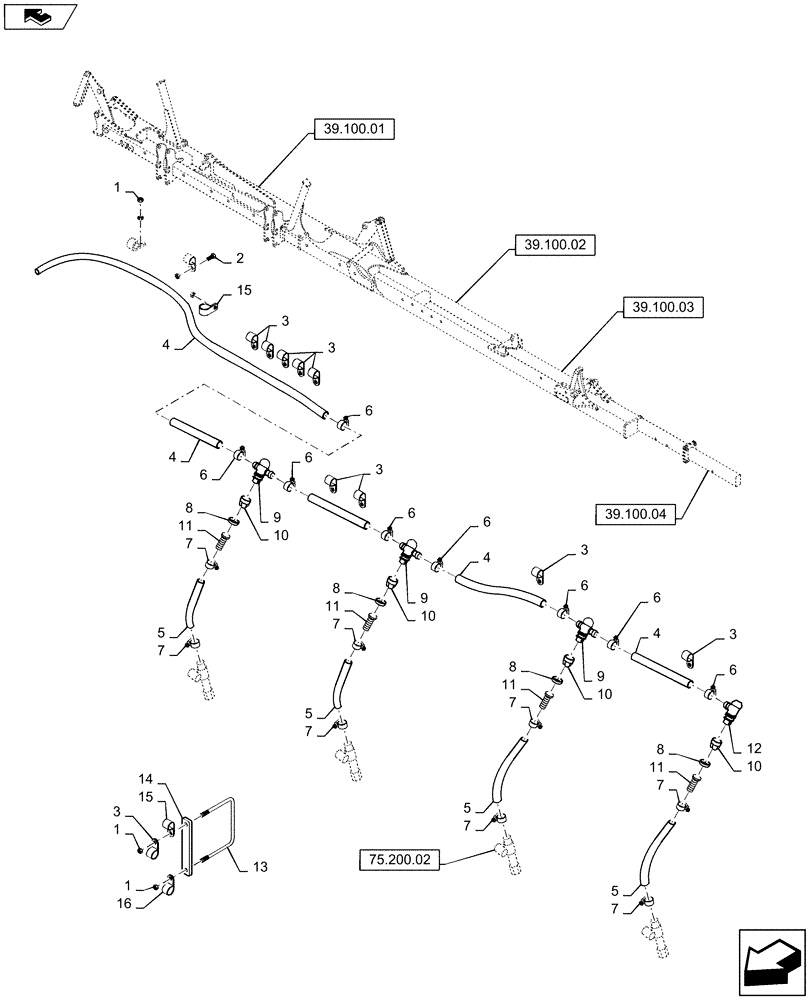

Запчасти Case IH 920 (78.110.05) - OUTER WING FRAME PLUMBING (INJECTION OPTION) (78) - SPRAYING

1

BN303203

CLAMP,1" Flange

1.00" Flange Clamp

1шт.

2

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1шт.

3

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1шт.

4

513309

HOSE CLAMP,1-1/16” - 2”, Worm Gear

2шт.

5

88902

NUT,3/8"-16

6шт.

6

84198529

CARRIAGE BOLT

0.375" X 2.00" Full Thread, GR5 ZND

3шт.

7

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

4шт.

8

84487405

HOSE

Hose, 1.00" Dia X 30', EPDM (Cut To Length)

1шт.

9

25661225

HOSE

Hose, 0.75" Dia. X 25', EPDM (Cut To Length)

1шт.

10

25630805

HOSE

Hoes, 0.50" ID X 60' Reinf., (Cut To Length)

1шт.

11

34308001

PIPE FITTING,1" NPT x 1" Hose Barb, Poly

1шт.

12

34308060

PIPE FITTING,1" NPT x 3/4" Hose Barb, Poly

1шт.

13

87558397

COUPLING,1" Poly Pipe Coupling

1шт.

14

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

8шт.

15

244358

HOSE CLIP,0.44" - 0.78"

8шт.

16

84516876

GASKET

4шт.

17

84517676

NOZZLE

3шт.

18

84516875

CAP

4шт.

19

84516877

SHANK

4шт.

20

84516871

NOZZLE

1шт.

21

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U"

1шт.

22

84397057

PLATE

1шт.

23

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

24

22510700

HOSE CLAMP,15.86mm

1/2" Double Clip

1шт.
