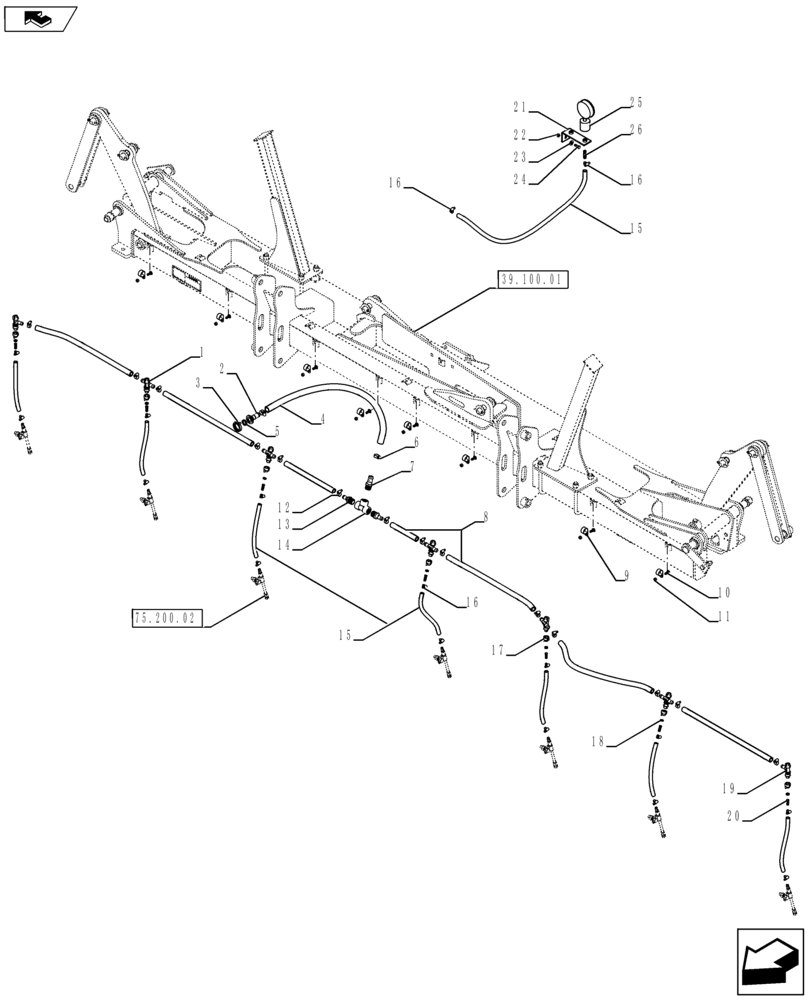

Запчасти Case IH 920 (78.110.03) - MAIN FRAME PLUMBING (INJECTION OPTION) (78) - SPRAYING

1

84517676

NOZZLE

5шт.

2

47453859

HOSE,Hose, 0.75" Dia. EPDM, (Cut To Length)

1шт.

3

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

8шт.

4

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

8шт.

5

88902

NUT,3/8"-16

8шт.

6

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

15шт.

7

87669667

FITTING,3/4" Hose Barb Tee

1шт.

8

47387421

HOSE

0.50" ID A.A. Hose X 60' Reinforced (Cut To Length)

1шт.

9

244358

HOSE CLIP,0.44" - 0.78"

16шт.

10

84516875

CAP

7шт.

11

84516876

GASKET

Gasket, TeeJet

7шт.

12

84516871

NOZZLE

2шт.

13

47388214

NOZZLE

Hose Shank, 0.50" TeeJet

7шт.

14

04681830

BRACKET

1шт.

15

9628503

NUT,3/8"-16, G5

1шт.

16

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

17

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

18

34599015

GAUGE ASSY.,160 PSI

1шт.

19

15040255

FITTING,1/4" - 18 NPT x 3/8" Hose Barb, SST

1шт.

20

244358

HOSE CLIP,0.44" - 0.78"

1шт.

21

04681830

BRACKET

Gauge Mount

1шт.

22

87039402

NUT,3/8"-16, GB

1шт.

23

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

24

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

25

34599015

GAUGE ASSY.,160 PSI

1шт.

26

15040255

FITTING,1/4" - 18 NPT x 3/8" Hose Barb, SST

1шт.
