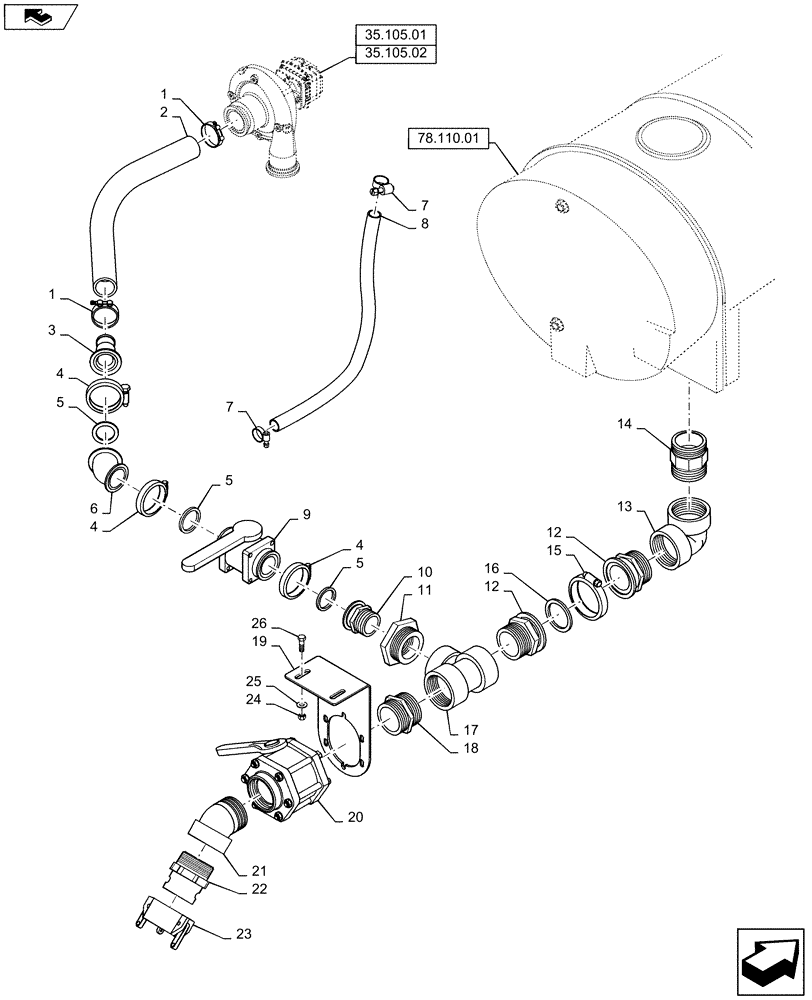

Запчасти Case IH 920 (78.110.02) - TANK PLUMBING (78) - SPRAYING

1

84481941

HOSE CLAMP

T-Bolt, 2.31 Inches

2шт.

2

47358893

HOSE

2.00" Dia X 3.00', EPDM, Max W.P. 150 Psi

1шт.

3

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

1шт.

4

BN313773

CLAMP,2" Full Port

2.00" Manifold Clamp

3шт.

5

BN313772

GASKET,2" Full Port, EPDM

3шт.

6

87267540

ELBOW,45 Degree Elbow, 2" Full Port Flange x 2" Full Port Flange, Poly

45 Degree

1шт.

7

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

2шт.

8

47453859

HOSE,Hose, 0.75" Dia. EPDM, (Cut To Length)

1шт.

9

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

1шт.

10

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

1шт.

11

84380658

BUSHING,3" MPT x 2" FPT Reducing Bushing

1шт.

12

BN321078

ADAPTER

2шт.

13

84380143

90 ELBOW,3" 90 Degree Poly Elbow

1шт.

14

84380406

NIPPLE,3" x 4" Poly Nipple

1шт.

15

BN321074

CLAMP,101.6mm

3.00" Manifold Clamp

1шт.

16

BN321073

GASKET,3" Flange, EPDM

1шт.

17

84380657

TEE,3" Poly Tee

1шт.

18

BN73788

NIPPLE, LUBE

NIPPLE

1шт.

19

84383950

PLATE

1шт.

20

84380156

VALVE,3" Full Port Valve

1шт.

21

84380164

ELBOW,3" 45 Degree Poly Street Elbow

1шт.

22

84380173

ADAPTER,3" Male Adapter-3" Male Thread

1шт.

23

BN2393384

CAP

1шт.

24

88902

NUT,3/8"-16

2шт.

25

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

0.438" I.D. X 1.00" O.D. X 0.083" Thick

2шт.

26

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.
