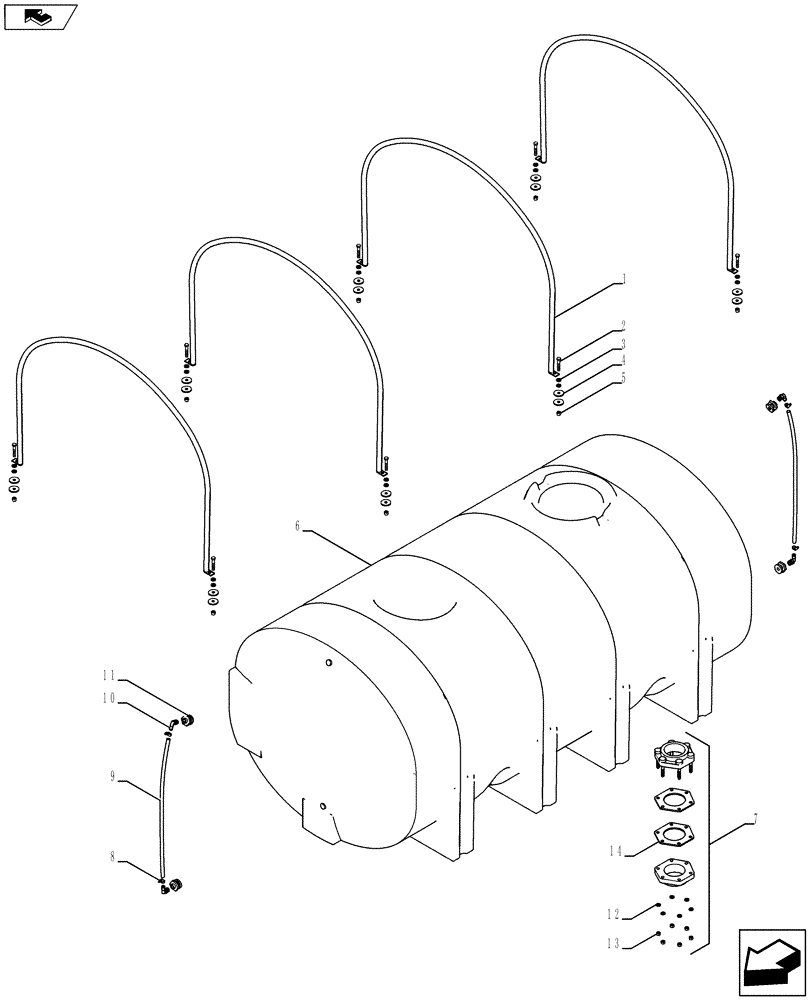

Запчасти Case IH 920 (78.110.01[02]) - TANK ASSY 2050 GALLON (78) - SPRAYING

1

84391576

FRAME

2050 Gallon

4шт.

2

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

2050 Gallon

8шт.

3

17411011

WASHER,17.2mm ID x 32mm OD x 4.37mm Thk

Flat, 1.265" O.D. X 0.695" I.D. X 0.160" Thick, Zinc Dichromate Plated

24шт.

4

84579774

WASHER

2050 Gallon, Washer 63.5 O.D. X 17.5 I.D. X 6.35 Thick

16шт.

5

85700693

NUT,5/8" - 11, Gr C

8шт.

6

84257474

TANK

2050 Gallon

1шт.

7

87609768

BULKHEAD,3" x 3" Threaded EPDM Flange

Incl 12 - 14

1шт.

8

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

4шт.

9

25631206

TUBE

2шт.

10

34306061

PIPE FITTING,3/4" NPT x 3/4" Hose Barb, 90 Degree

5шт.

11

406148A1

FITTING

5шт.

12

NSS

NOT SOLD SEPARAT

Incl in 7 0.375" Lock Washer SS

6шт.

13

NSS

NOT SOLD SEPARAT

Incl in 7 0.375" Lock Nut SS

6шт.

14

87609769

GASKET

2шт.
