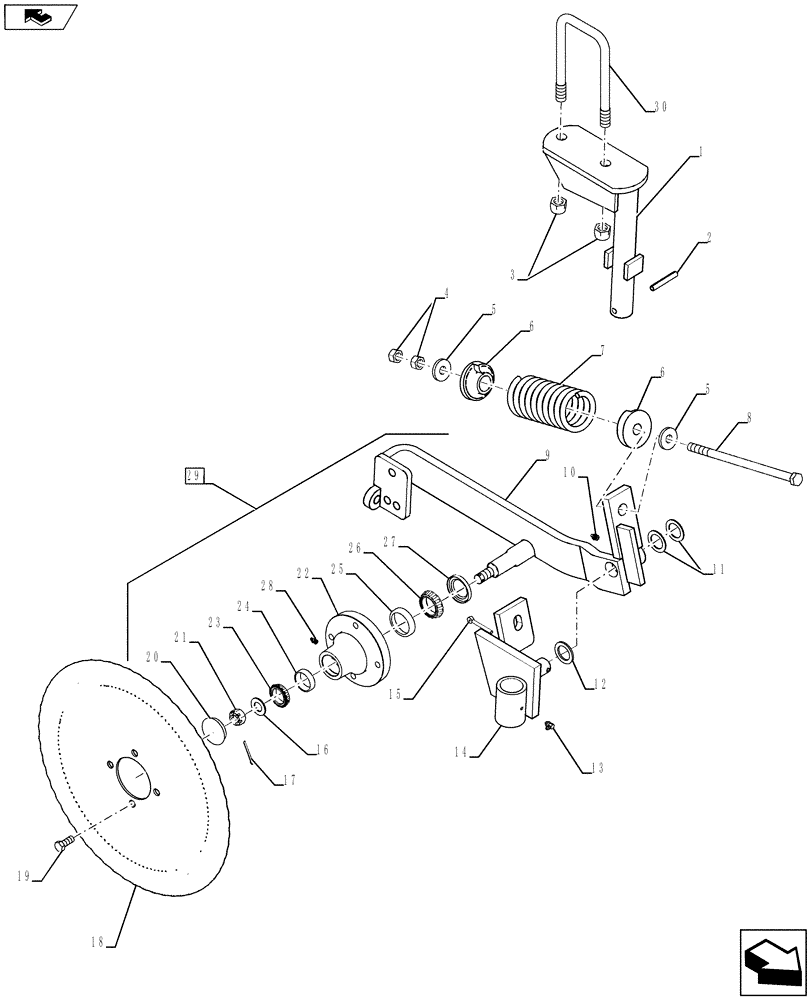

Запчасти Case IH 920 (75.200.01) - SPRING COULTER (75) - SOIL PREPARATION

1

05302700

MOUNTING PARTS

Coulter

1шт.

2

84294526

SLOTTED PIN

1шт.

3

280375

NUT,3/4"-10, GC

2шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

87613192

WASHER,0.66" ID x 1.75" OD x 0.24" Thk

2шт.

6

20090050

HOLDER

2шт.

7

24143880

COMPRESSION SPRING

1шт.

8

87439266

BOLT,Hex, 5/8" - 11 x 12", Gr 5, Spcl

5/8" - 11 X 12.0 Long SAE GR5 ZND

1шт.

9

NSS

NOT SOLD SEPARAT

Included In 31

1шт.

10

87019498

FITTING

1шт.

11

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

2шт.

12

17620030

WASHER,32.15mm ID x 47.63mm OD x 10mm Thk

1шт.

13

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1шт.

14

NSS

NOT SOLD SEPARAT

Included In 29

1шт.

15

88182

COTTER PIN,1/4" OD x 2" L

1шт.

16

17413001

WASHER

1шт.

17

88350

COTTER PIN,5/32" x 1-1/2"

1шт.

18

443627A1

PLOW DISC

1шт.

19

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

Wheel

4шт.

20

28463300

HUB CAP

Hub Cap

1шт.

21

NSS

NOT SOLD SEPARAT

Slotted Nut

1шт.

22

28263340

HUB

Hub

1шт.

23

179080

BEARING ASSY,19.06mm ID x 45.25mm OD x 15.49mm W

Bearing Cone

1шт.

24

36725

BEARING CUP,45.26mm OD x 12.06mm W

Bearing Cup

1шт.

25

36723

BEARING CUP,59.16mm OD x 11.81mm W

Bearing Cup

1шт.

26

36726

BEARING CONE,31.75mm ID x 16.76mm W

Bearing Cone

1шт.

27

36727

OIL SEAL,38.1mm ID x 59.28mm OD x 13.11mm Thk

Seal

1шт.

28

87414

LUBE NIPPLE,1/4" - 28

1шт.

29

28163300

HUB ASSY.

Incl 19,20 - 28 16,17

1шт.

30

84512282

U-BOLT

Used On Main Frame

1шт.

30

87427182

U-BOLT

BOLT "U" Used On Inner And Outer Wings

1шт.

31

84526423

ARM

Incl 4 - 17, 19 - 28

1шт.
