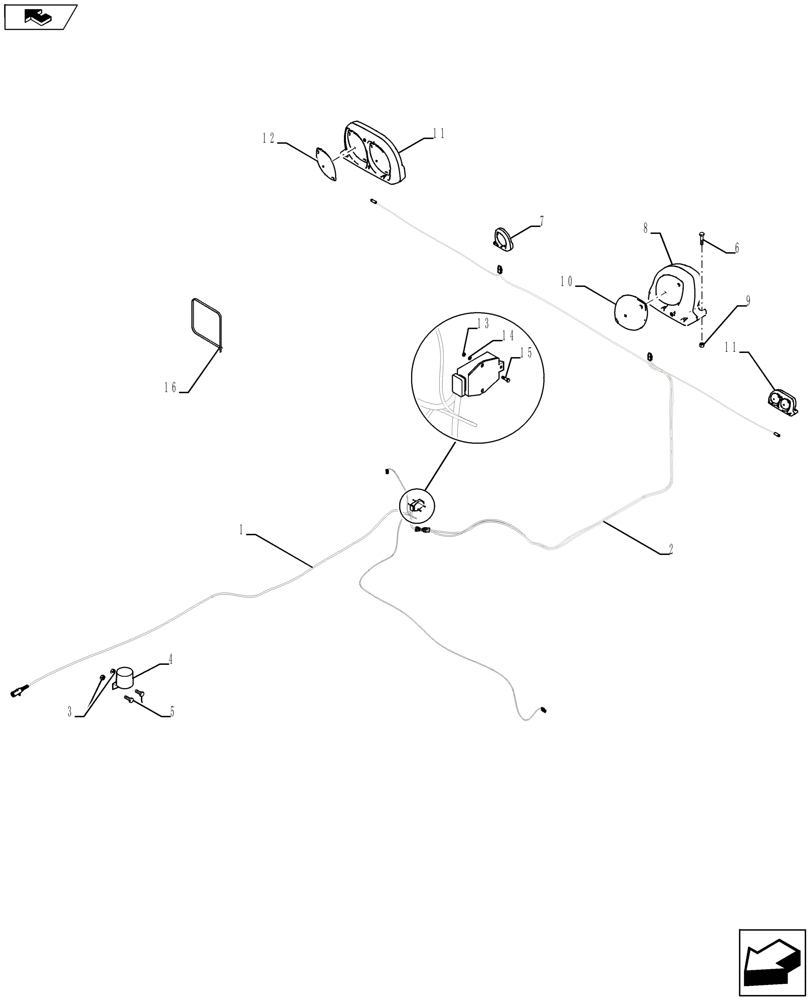

Запчасти Case IH 920 (55.404.01) - WIRE HARNESS & CONNECTOR (55) - ELECTRICAL SYSTEMS

1

47379173

WIRE HARNESS

Front

1шт.

2

84580732

SIDE RAIL

Rear

1шт.

3

86992211

NUT

2шт.

4

27601214

HOLDER

Plug Holder (Lights)

1шт.

5

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

6

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

(4) Per Light Assembly

1шт.

7

87520382

LIGHT

RH, Red Single Light

1шт.

8

87519398

LIGHT

LH, Red Single Light

1шт.

9

87034810

NUT,1/4"-20, GA

(4) Per Light Assembly

1шт.

10

84178560

LENS

Red Lens

1шт.

11

87519394

LIGHT,12V, 21W, Amber

Double Amber Light Assembly

2шт.

12

84178558

LENS

Amber Lens

1шт.

13

80043440

NUT,M5 x 0.8, Cl 8

2шт.

14

9824326

WASHER,5.3mm ID x 10mm OD x 1mm Thk

2шт.

15

86050276

BOLT,Hex, M5 x 16mm, Cl 8.8, Full Thd

2шт.

16

533959R1

CABLE TIE,.135" x 11"

CABLE STRAP

1шт.

16

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

1шт.
