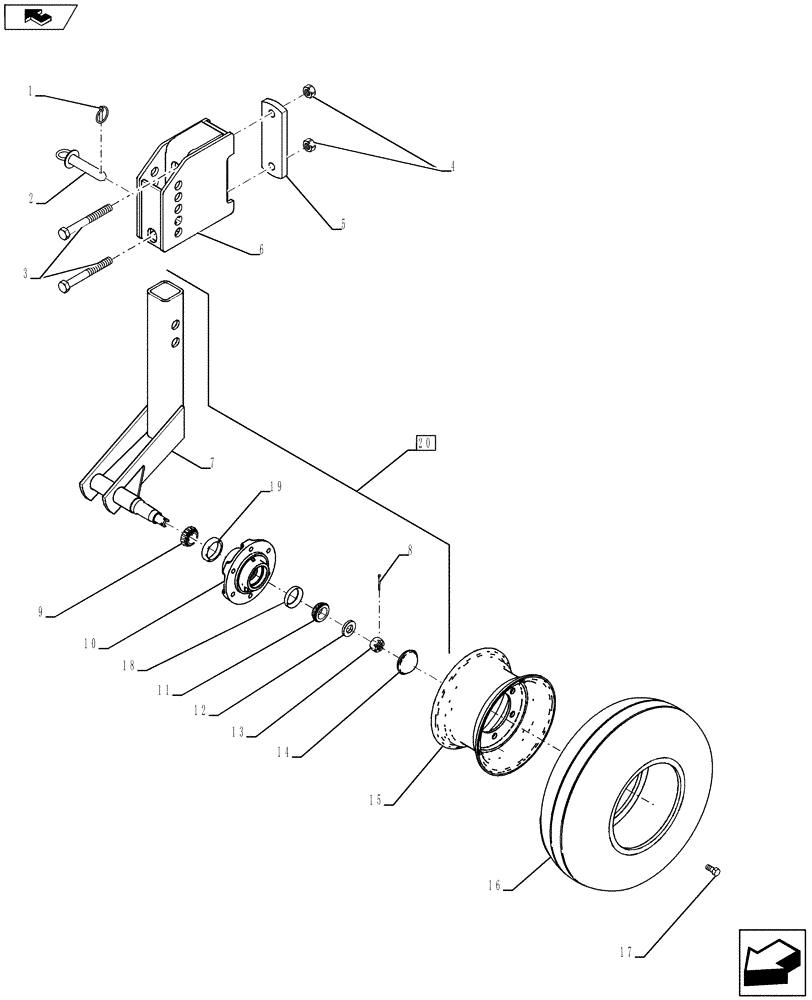

Запчасти Case IH 920 (44.100.02) - GAUGE WHEEL (44) - WHEELS

1

270184

LINCH PIN,6.35mm OD

0.25"

1шт.

2

14816348

PIN,25.4mm OD x 133.35mm L

1.00" X 4.25" Long, SS

1шт.

3

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

2шт.

4

280375

NUT,3/4"-10, GC

2шт.

5

09576610

LINKAGE

1шт.

6

84382866

MOUNT

Mount, Gauge Wheel

1шт.

7

NSS

NOT SOLD SEPARAT

Included In 20

1шт.

8

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

9

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

10

84421942

HUB

Incl 18 - 19

1шт.

11

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

12

17915000

WASHER

1шт.

13

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

14

28477700

HUB CAP

1шт.

15

10106202

WHEEL ASSY.

10 X 6 Wheel, 6 Lug

1шт.

16

NSS

NOT SOLD SEPARAT

Tire, 20.5 - 8.00 X 10 Load Rating D, Procure Locally

1шт.

17

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

Bolt, Wheel

6шт.

18

651817R1

BEARING CUP

1шт.

19

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

20

84550497

ARM

LH, Incl 7 - 14, 17, 18 - 19

1шт.

20

84550494

ARM

RH, Incl 7 - 14, 17, 18 - 19

1шт.
