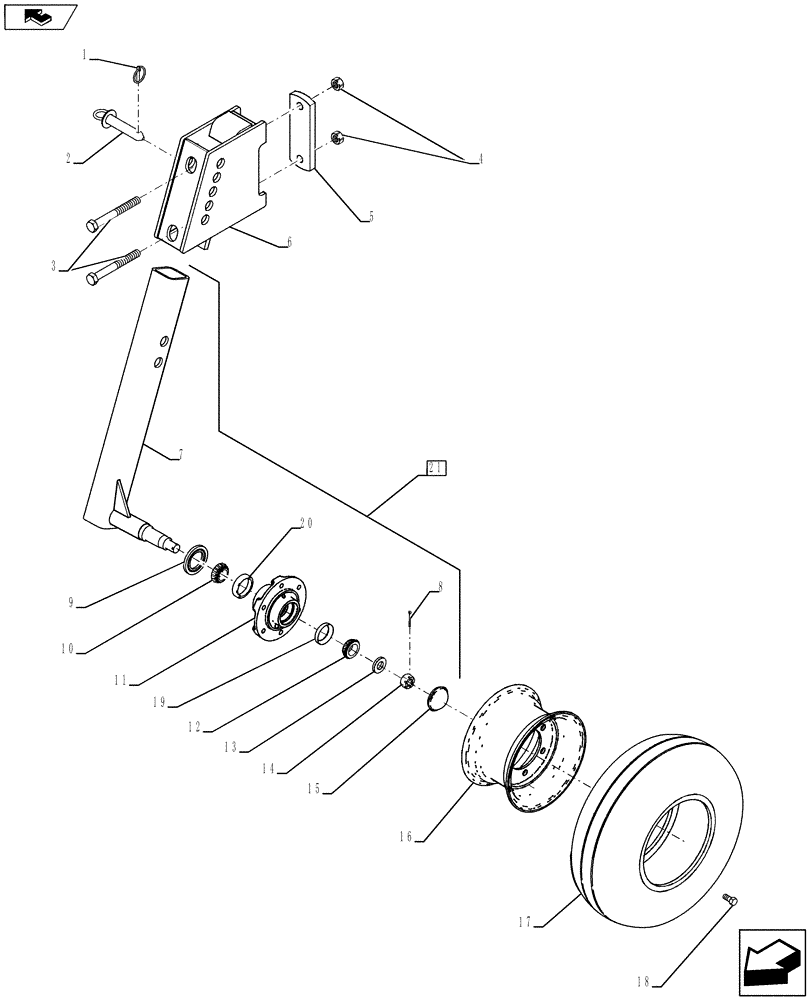

Запчасти Case IH 920 (44.100.02[02]) - GAUGE WHEEL (ASN YCD058005) (44) - WHEELS

1

270184

LINCH PIN,6.35mm OD

1шт.

2

14816348

PIN,25.4mm OD x 133.35mm L

1шт.

3

280223

BOLT,Hex, 3/4"-10 x 6 1/2", G5

2шт.

4

280375

NUT,3/4"-10, GC

2шт.

5

09576610

LINKAGE

1шт.

6

04661320

GAUGE

Mount Gauge Wheel

1шт.

7

NSS

NOT SOLD SEPARAT

Incl in 20

1шт.

8

432-1024

COTTER PIN,5/32" x 1 1/2"

1шт.

9

614410R91

SEAL

1шт.

10

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

1шт.

11

84421942

HUB

Incl 18 - 19

1шт.

12

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

1шт.

13

17915000

WASHER

1шт.

14

425-1314

SLOTTED NUT,7/8"-14, G5

1шт.

15

28477700

HUB CAP

1шт.

16

10106202

WHEEL ASSY.

10 X 6 Wheel Lug

1шт.

17

PL

PROCURE LOCALLY

Tire 20.5-8.00 X 10 Load Rating D

1шт.

18

549962R1

BOLT,1 1/2" - 20 x 1 1/2", Class 3

Wheel

6шт.

19

651817R1

BEARING CUP

1шт.

20

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

21

02380400

BAR ASSY.

LH & RH Incl 7 -14, 18 - 19

1шт.
