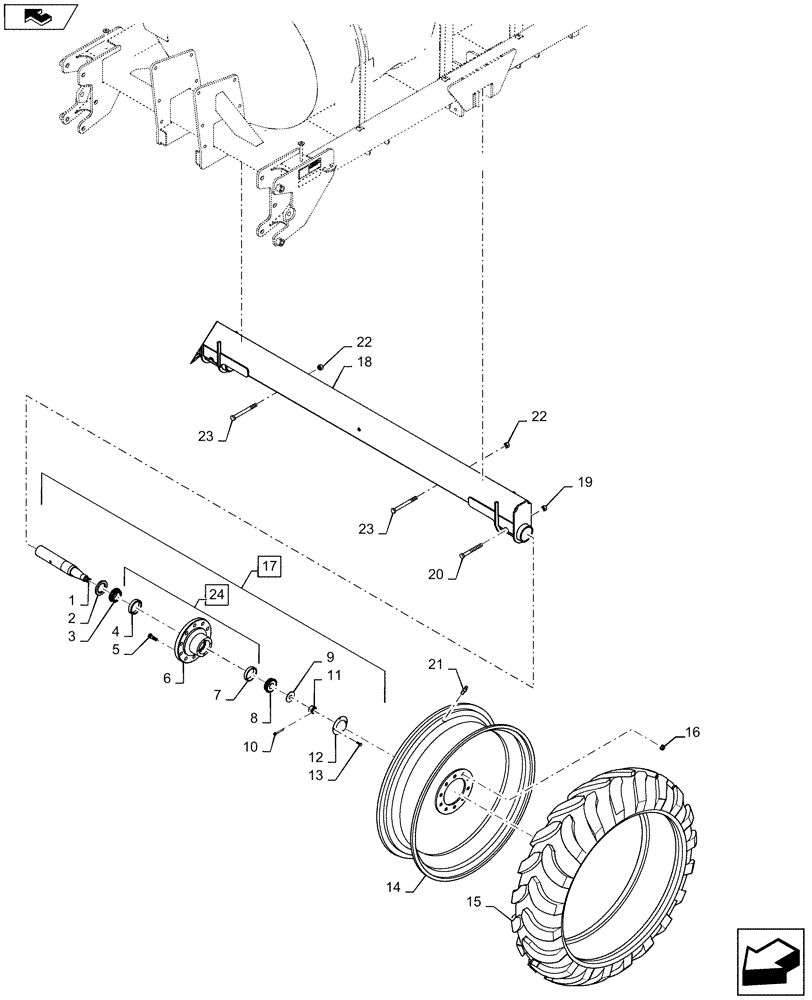

Запчасти Case IH 920 (44.100.01) - TANK FRAME WHEEL ASSY (44) - WHEELS

1

28387101

SPINDLE

1шт.

2

21933000

SEAL

1шт.

3

21872505

ROLLER BEARING,63.5 mm ID

1шт.

4

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

1шт.

5

16412418

STUD

10шт.

6

NSS

NOT SOLD SEPARAT

Included In 24

1шт.

7

714428

BEARING CUP

1шт.

8

21871750

ROLLER BEARING,1.75" ID

1шт.

9

17952632

WASHER

1.281" I.D. X 3.250" O.D. X 0.187" Thick, Special Washer

1шт.

10

88182

COTTER PIN,1/4" OD x 2" L

1шт.

11

14052012

SLOTTED NUT

1-1/4"-12 UNF, Slotted

1шт.

12

28487101

HUB CAP

1шт.

13

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

4шт.

14

84374559

WHEEL

1шт.

15

NSS

NOT SOLD SEPARAT

Tire, Tubeless, 420 - 80 R46 LI170 Procure Locally

1шт.

16

9790660

FLANGE NUT,Flg, 3/4"-16, G8

10шт.

17

28087102

HUB ASSY.

Incl 1 - 13

1шт.

18

84380636

FRAME

Axle

1шт.

19

88871

NUT,1/2"-13, GC

1шт.

20

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

1шт.

21

810769C1

VALVE

Valve Stem

1шт.

22

87681198

NUT,Hex, 7/8"-9, 0.45 high

7/8"-9 Hex

2шт.

23

87490806

BOLT

7/8"-9 X 9.00" GR 5

2шт.

24

84252595

HUB

Incl 4 - 7

1шт.
