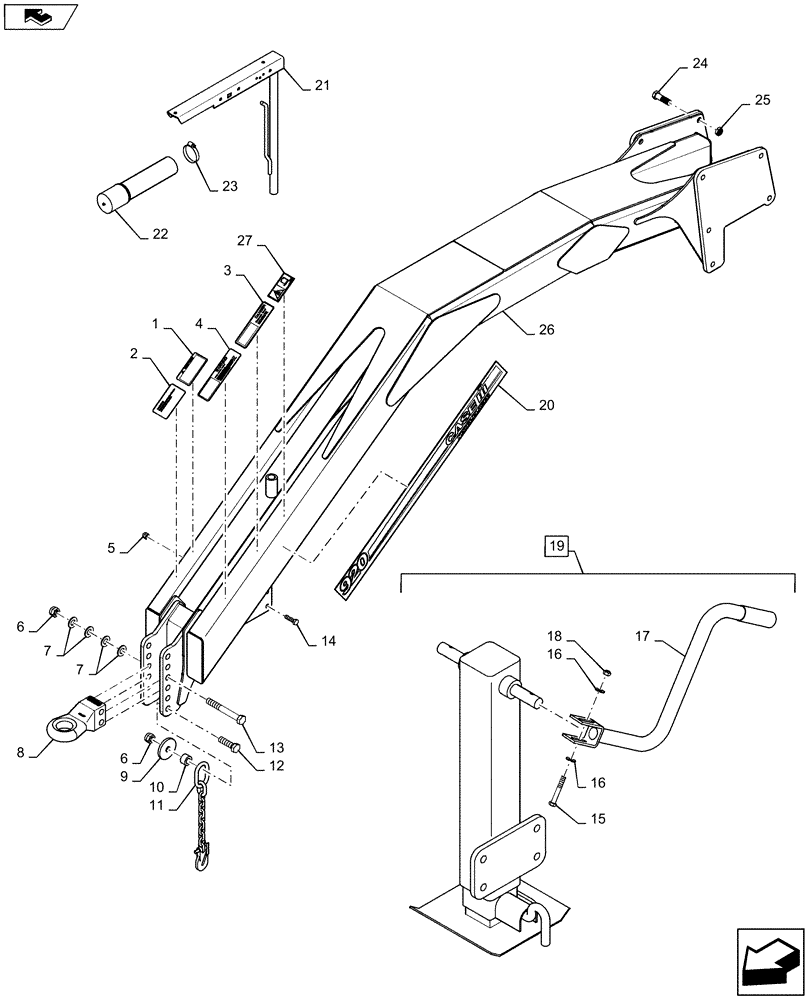

Запчасти Case IH 920 (39.100.08) - HITCH FRAME (39) - FRAMES AND BALLASTING

1

18534228

DECAL

CAUTION

1шт.

2

18534282

WARNING DECAL

WARNING Hydraulic Oil

1шт.

3

18534371

WARNING SIGN

DANGER Electocution

1шт.

4

18534370

WARNING SIGN

WARNING Towing Stability Hazard

1шт.

5

85700693

NUT,5/8" - 11, Gr C

4шт.

6

9626600

NUT,1"-8, GC

3шт.

7

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

1.0625" X 2.00" X 0.134" CST ZND

8шт.

8

251366A1

TOW BAR

Hitch Base CAT. IV

1шт.

9

06400065

WASHER

1шт.

10

04681211

BUSHING

1.75" OD X 1.03" ID X 1.12" LNG

1шт.

11

87619912

CHAIN

1шт.

12

88962

BOLT,Hex, 1" - 8 x 3 1/2", Gr 5

1шт.

13

86534764

BOLT,Hex, 1" - 8 x 8", Gr 8

2шт.

14

88556

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 5

4шт.

15

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

Hex Bolt, 3/8"-16 x 2 1/2", G5

1шт.

16

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

Washer, 5/16"

2шт.

17

22032

CRANK

1шт.

18

88954

NUT,3/8"-16, G5

Nut, 3/8"-16, GB

1шт.

19

84376349

JACK

Incl 15 - 18

1шт.

20

84380513

DECAL

Nutri-Placer 920 Decal Left Side

1шт.

20

84380514

DECAL

Nutri-Placer 920 Decal Right Side

1шт.

21

05302150

STAND

1шт.

22

30026030

TUBE

1шт.

23

87040758

HOSE CLAMP,71.4mm - 95.2mm

1шт.

24

271821

BOLT,Hex, 7/8" - 9 x 3 1/2", Gr 5

5шт.

25

87681198

NUT,Hex, 7/8"-9, 0.45 high

5шт.

26

84387804

FRAME

Incl 1 - 4, 20,27

1шт.

27

47396168

WARNING DECAL

Towing Hazard

1шт.
