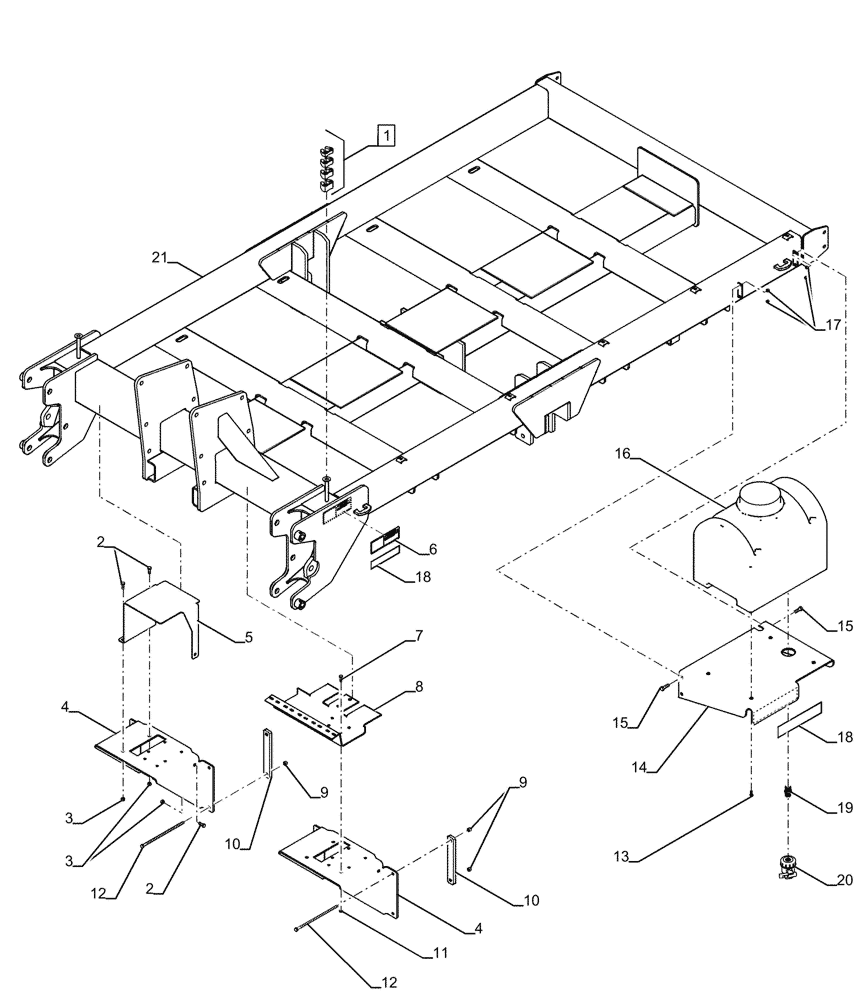

Запчасти Case IH 920 (39.100.07) - TANK FRAME (39) - FRAMES AND BALLASTING

1

25800010

CYLINDER

Cylinder Stop, Complete Set Of 4

2шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

3

9628503

NUT,3/8"-16, G5

3шт.

4

84377266

PLATE

2шт.

5

84511493

COVER PLATE

1шт.

6

18534317

WARNING SIGN

Caution, Tipping Hazard

2шт.

7

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

8

84418940

PLATE

1шт.

9

88902

NUT,3/8"-16

8шт.

10

84377333

PLATE

4шт.

11

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

280750

BOLT,Hex, 3/8" - 16 x 10", Gr 5

3/8"-16 X 10.00" GR5 ZND

8шт.

13

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

14

84534963

PLATE

1шт.

15

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

4шт.

16

87461173

TANK

1шт.

17

88902

NUT,3/8"-16

4шт.

18

311864A1

REFLECTOR

Reflector Amber (2" X 9")

5шт.

19

34308004

HYD CONNECTOR,1/2" NPT x 1/2" NPT, Poly

1/2" Poly Nipple

1шт.

20

34308003

VALVE,1/2" Single Union Poly Valve

1шт.

21

47983127

FRAME

Tank With Decals

1шт.
