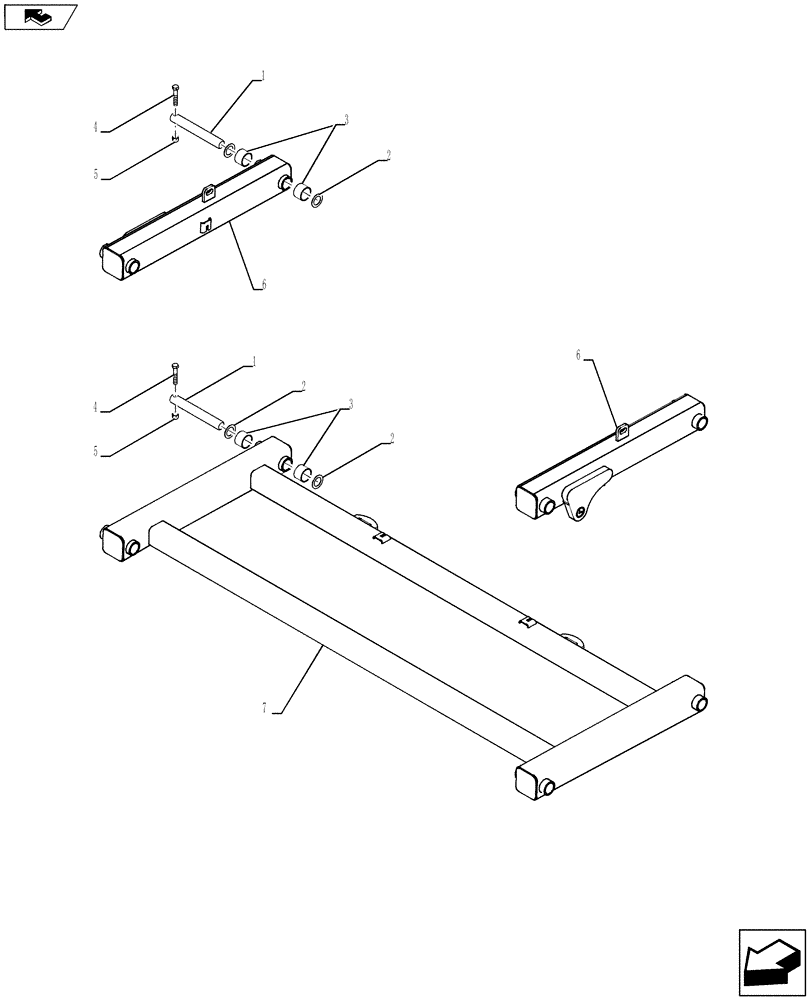

Запчасти Case IH 920 (39.100.06) - LIFT LINK ASSY (39) - FRAMES AND BALLASTING

1

87394432

PIN,31.75mm OD x 236mm L

1шт.

2

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

1.312" X 2.00" X 0.067" Thick

1шт.

3

87433288

GUIDE BUSHING,31.9mm ID x 38.28mm OD x 31.75mm L

1шт.

4

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

Qty Per Pin

1шт.

5

88871

NUT,1/2"-13, GC

Qty Per Pin

1шт.

6

84387820

FRAME

RH, Incl 3 As Required

1шт.

6

84387819

FRAME

LH, Incl 3 As Required

1шт.

7

84387822

FRAME

Incl 3 As Required

1шт.
