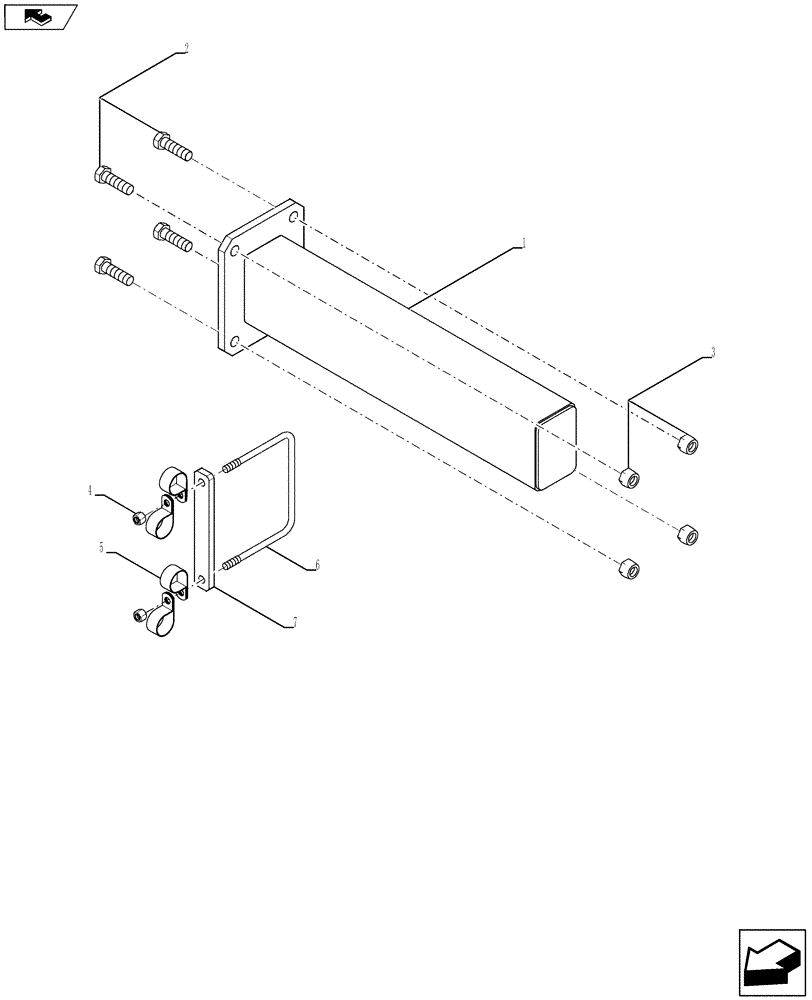

Запчасти Case IH 920 (39.100.04) - STUB WING FRAME (39) - FRAMES AND BALLASTING

1

84380975

FRAME

Stub Wing For 25 Row Option

1шт.

2

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

4шт.

3

280375

NUT,3/4"-10, GC

4шт.

4

88902

NUT,3/8"-16

1шт.

5

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

Number Of Clamps Can Differ Per Location

1шт.

6

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U"

1шт.

7

84397057

PLATE

1шт.
