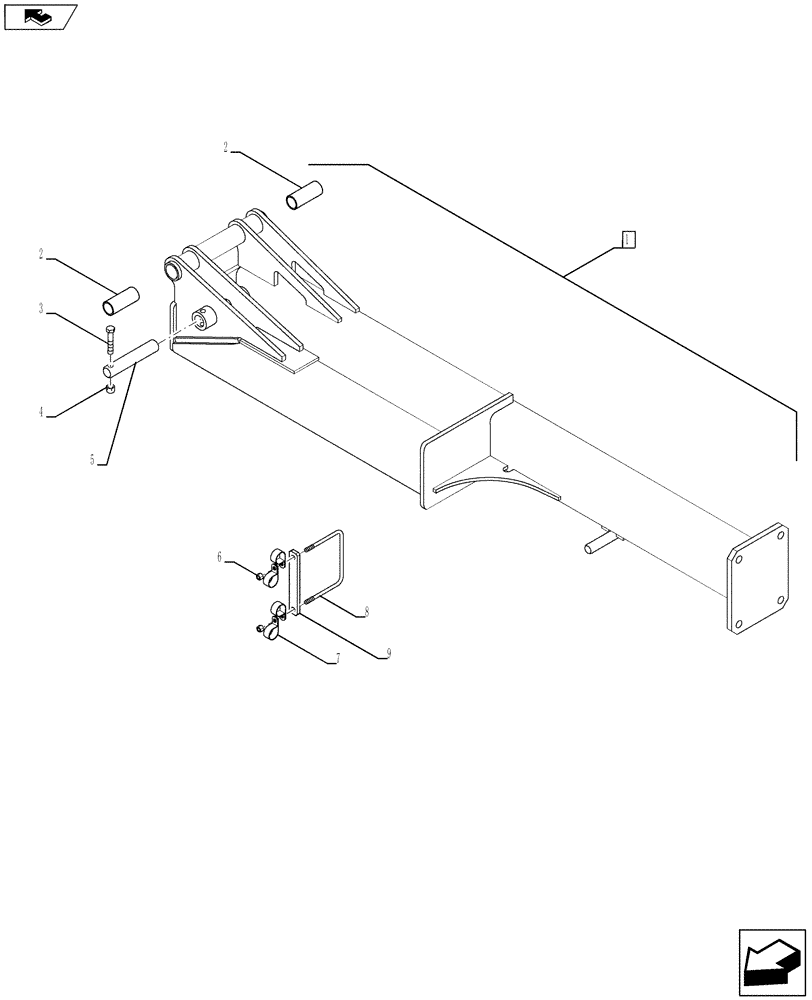

Запчасти Case IH 920 (39.100.03) - OUTER WING FRAME (39) - FRAMES AND BALLASTING

1

84379838

FRAME

RH, Outer Wing, Incl 2

1шт.

1

84379837

FRAME

LH, Outer Wing, Incl 2

1шт.

2

84266874

BUSHING

2шт.

3

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

1шт.

4

88871

NUT,1/2"-13, GC

1шт.

5

84142649

PIN

1шт.

6

88902

NUT,3/8"-16

1шт.

7

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

Number Of Clamps Can Differ Per Location

1шт.

8

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U"

1шт.

9

84397057

PLATE

1шт.
