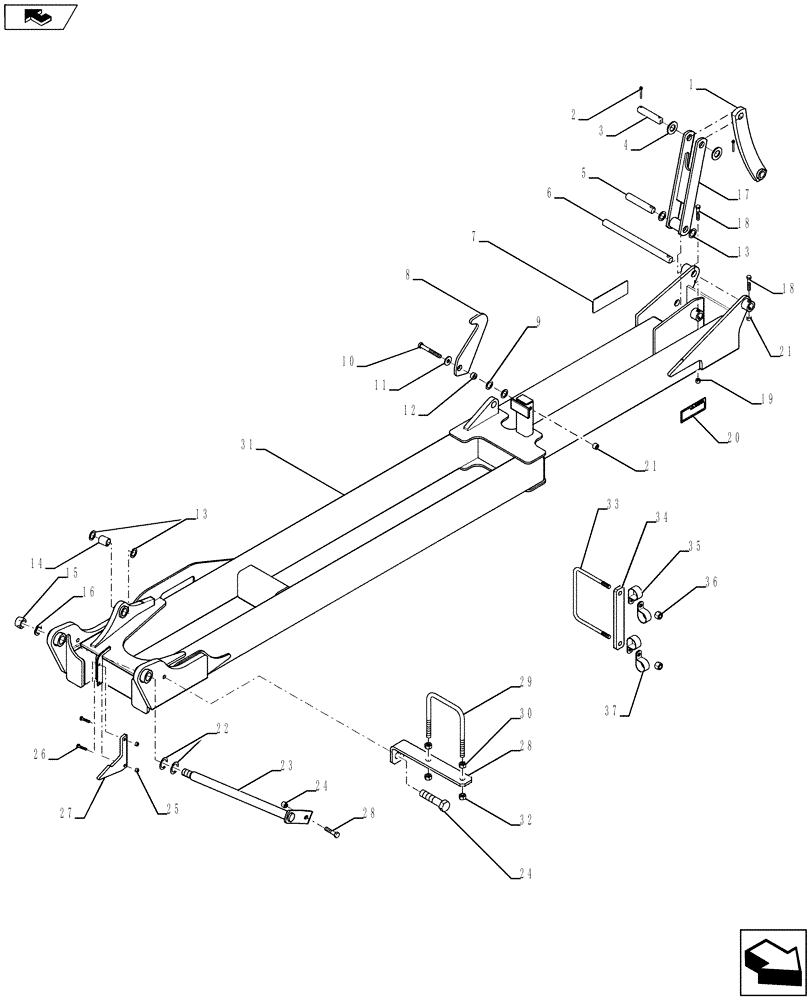

Запчасти Case IH 920 (39.100.02) - INNER WING FRAME (39) - FRAMES AND BALLASTING

1

84498451

LINKAGE

1шт.

2

88182

COTTER PIN,1/4" OD x 2" L

2шт.

3

84468949

PIN

1шт.

4

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

2шт.

5

84142649

PIN

1шт.

6

47358828

PIN

1шт.

7

18534333

DANGER DECAL

1шт.

8

84126353

PLATE

1шт.

9

17618030

BUSHING

2шт.

10

88729

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

11

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

12

44006201

BUSHING,16.38mm ID x 28.58mm OD x 15.75mm L

1шт.

13

17620020

BUSHING,32.15mm ID x 47.63mm OD x 2.08mm L

4шт.

14

84541859

BUSHING

1шт.

15

86614103

NUT,1 1/4"-7, GC

1шт.

16

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

1.312" I.D. X 1.984" O.D. X 0.180" Thick

1шт.

17

84498530

LINKAGE

1шт.

18

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

19

88871

NUT,1/2"-13, GC

2шт.

20

18534227

DANGER DECAL

1шт.

21

85700693

NUT,5/8" - 11, Gr C

2шт.

22

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

2шт.

23

84373202

PIN

1шт.

24

88693

BOLT,Hex, 5/8" - 11 x 2 3/4", Gr 5

2шт.

25

280129

NUT,1/4"-20

Left Wing Only

2шт.

26

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

Left Wing Only

2шт.

27

84384091

PLATE

Left Wing Only

1шт.

28

84466123

PLATE

Used In Different Locations

1шт.

29

16309091

U-BOLT,3/8" - 16, Square, 4" W x 5" L

BOLT "U" Used In Different Locations

1шт.

30

9628503

NUT,3/8"-16, G5

4шт.

31

84379795

FRAME

LH

1шт.

31

84379796

FRAME

RH

1шт.

32

88902

NUT,3/8"-16

2шт.

33

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U"

1шт.

34

84397057

PLATE

1шт.

35

22510700

HOSE CLAMP,15.86mm

1шт.

36

88902

NUT,3/8"-16

1шт.

37

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.
