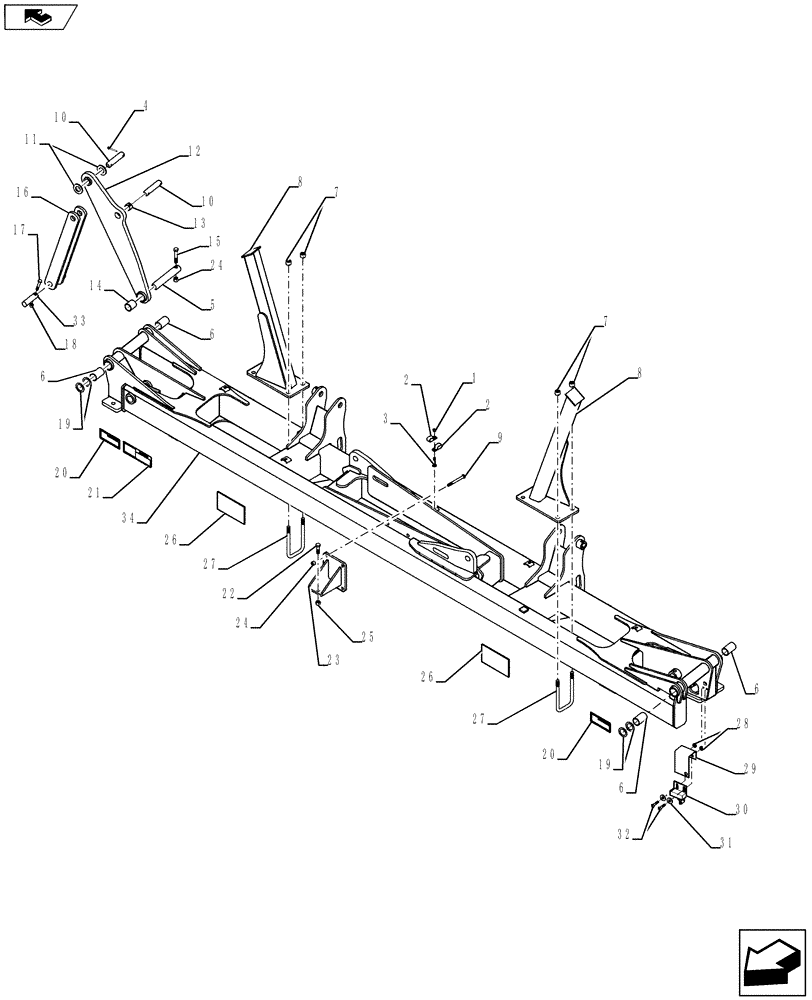

Запчасти Case IH 920 (39.100.01) - MAIN FRAME (39) - FRAMES AND BALLASTING

1

9628503

NUT,3/8"-16, G5

1шт.

1

88902

NUT,3/8"-16

1шт.

2

22510700

HOSE CLAMP,15.86mm

Cushioned 3/8" Hose Clamp

1шт.

3

87495290

CARRIAGE BOLT

3/8"-16 X 2.00", GR5 Full Thread

1шт.

3

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

4

88182

COTTER PIN,1/4" OD x 2" L

4шт.

5

84518693

PIN

2шт.

6

84373107

BUSHING

4шт.

7

280375

NUT,3/4"-10, GC

8шт.

8

84387328

FRAME

Wing Stop

2шт.

9

84009

BOLT

5/8"-11 X 6.00", GR5

4шт.

10

84468949

PIN

2шт.

11

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

4шт.

12

84544868

LINK

Incl 13, 14

2шт.

13

BN321131

BUSHING,31.75mm ID x 38.73mm OD x 25.4mm L

2шт.

14

84541772

BUSHING

2шт.

15

280119

BOLT,Hex, 5/8" - 11 x 3 1/2", Gr 5

2шт.

16

84518383

LINKAGE

2шт.

17

87974

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

2шт.

18

88871

NUT,1/2"-13, GC

2шт.

19

17627010

WASHER,41.67mm ID x 60.33mm OD x 2.08mm Thk

4шт.

20

18534227

DANGER DECAL

2шт.

21

18534333

DANGER DECAL

1шт.

22

9706701

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 5

2шт.

23

84514418

MOUNT

1шт.

24

85700693

NUT,5/8" - 11, Gr C

4шт.

25

280375

NUT,3/4"-10, GC

2шт.

26

84539246

WARNING DECAL

1шт.

27

84512282

U-BOLT

4шт.

28

84481946

NUT

12mm - 24 Nut

2шт.

29

05302926

COVER

1шт.

30

05302925

SWITCH

1шт.

31

84481947

WASHER,0.31" ID x 0.74" OD x 0.65" Thk

0.313" I.D. X 0.740" O.D. X .065" Thick

2шт.

32

84524239

SCREW

12mm - 24 X 1.00" SS, Pan Head

2шт.

33

84544968

PIN

2шт.

34

84379621

FRAME

Main Frame W/Decals

1шт.
