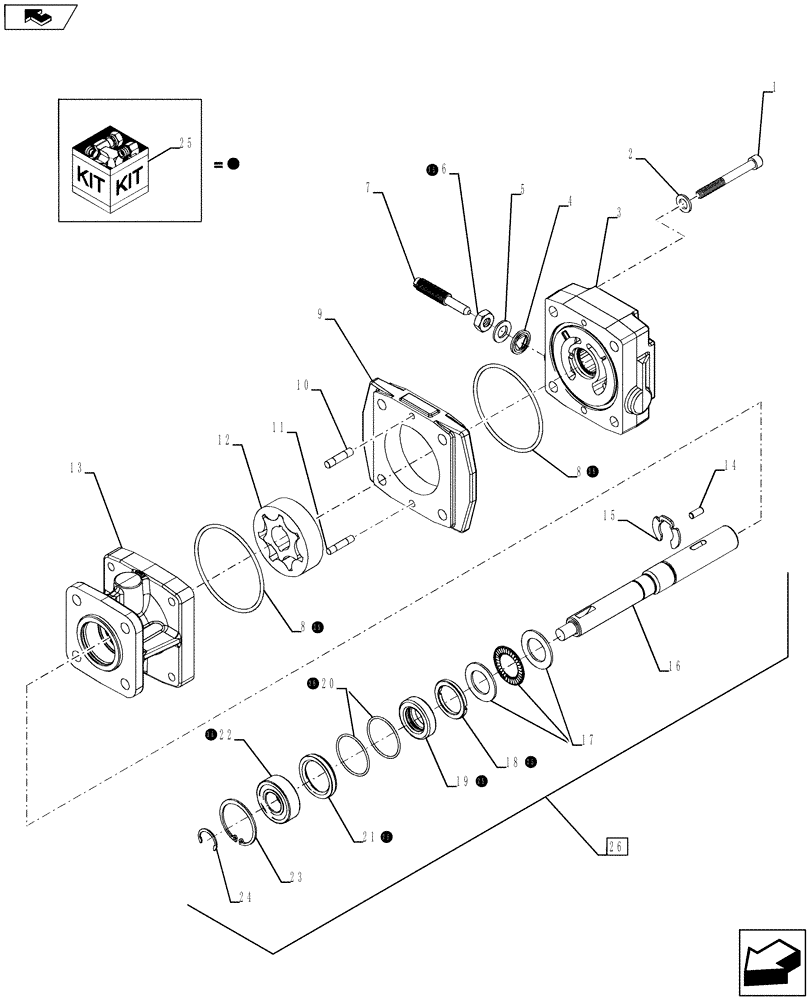

Запчасти Case IH 920 (35.105.01) - LIQUID FERTILIZER PUMP (35) - HYDRAULIC SYSTEMS

1

84270032

BOLT

4шт.

2

84270031

WASHER

4шт.

3

84364090

END PLATE

1шт.

4

84543440

SEAL

1шт.

5

84543441

WASHER

1шт.

6

NSS

NOT SOLD SEPARAT

Included In 25

1шт.

7

87577683

VALVE STEM

1шт.

8

NSS

NOT SOLD SEPARAT

Included In 25

2шт.

9

84174339

COUPLING

1шт.

10

84270023

PIN

1шт.

11

84270022

PIN

1шт.

12

84543443

GEROTOR

1шт.

13

84364089

BODY

1шт.

14

6060

ROLL PIN

1шт.

15

87578620

SNAP RING

1шт.

16

84187261

SHAFT

1шт.

17

87577677

BEARING ASSY

1шт.

18

NSS

NOT SOLD SEPARAT

Included In 25

1шт.

19

NSS

NOT SOLD SEPARAT

Included In 25

1шт.

20

NSS

NOT SOLD SEPARAT

Included In 25

2шт.

21

NSS

NOT SOLD SEPARAT

Included In 25

1шт.

22

NSS

NOT SOLD SEPARAT

Included In 25

1шт.

23

BN98259

RING

1шт.

24

129345

SNAP RING,#62, Ext

1шт.

25

84325648

SEAL KIT

Incl 6, 8, 18 - 22

1шт.

26

84543183

HYDRAULIC MOTOR

Incl 1 - 24

1шт.
