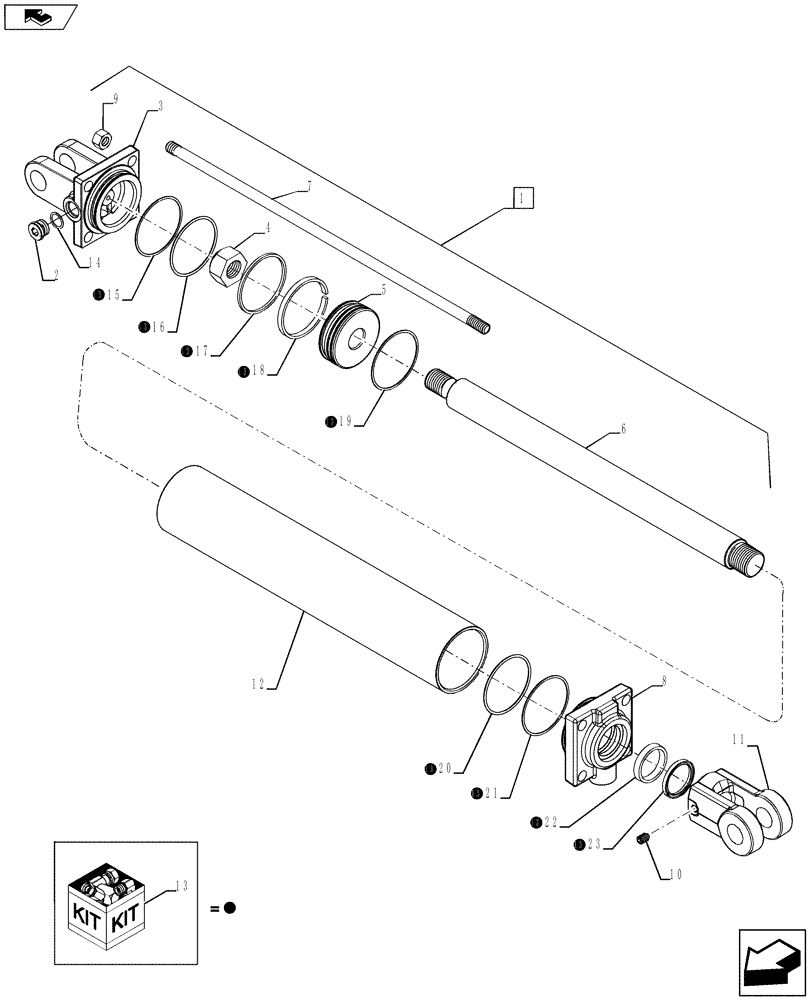

Запчасти Case IH 920 (35.100.07) - HYDRAULIC CYLINDER LIFT LINK (35) - HYDRAULIC SYSTEMS

1

84394189

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3.50" X 12.00", Complete Cylinder, Incl 2 - 12, 14

1шт.

2

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

3

84407282

CLEVIS

1шт.

4

87314800

LOCK NUT

1"-14

1шт.

5

87409481

PISTON

1шт.

6

84220844

PISTON ROD

1шт.

7

87548070

TIE-ROD

4шт.

8

87409417

HEAD

1шт.

9

408

NUT,5/8" - 18, Gr 5

8шт.

10

84212867

SET SCREW

0.375" UNC W/Nylon Tip

1шт.

11

87409390

CLEVIS,1 -1/2" - 12

1шт.

12

84545569

TUBE

Incl 15 - 23

1шт.

13

84137861

SEAL KIT

1шт.

14

NSS

NOT SOLD SEPARAT

Included In 1, O-Ring

1шт.
