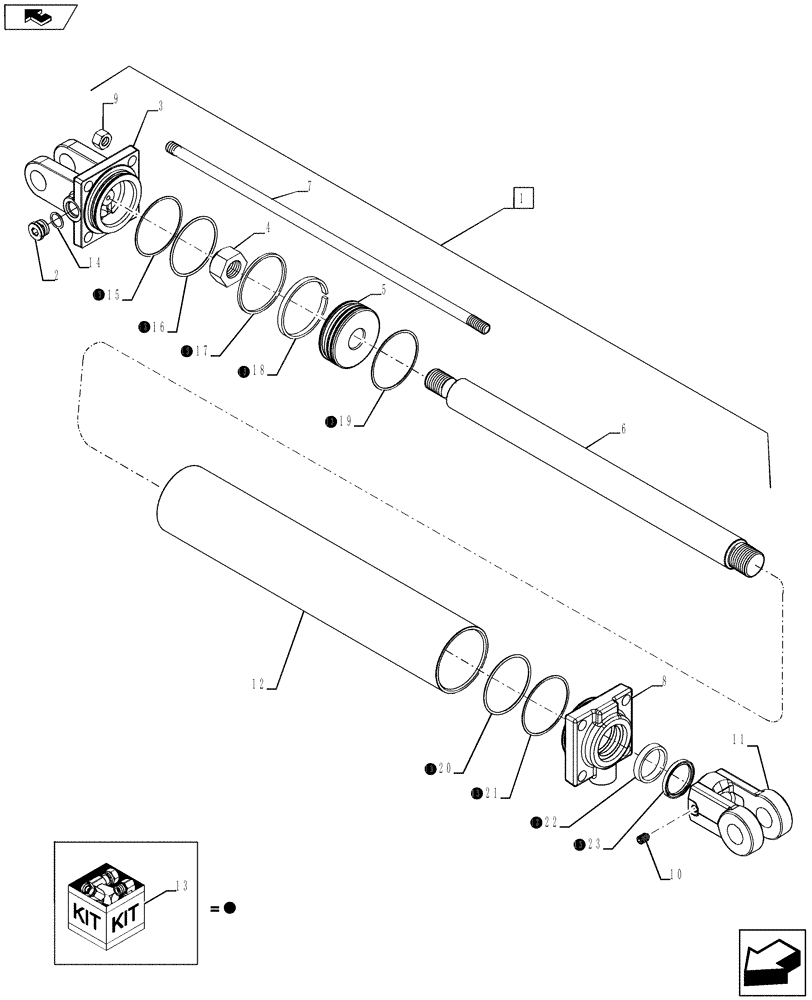

Запчасти Case IH 920 (35.100.06) - HYDRAULIC CYLINDER INNER WING (35) - HYDRAULIC SYSTEMS

1

84399991

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5.00" X 30.00", Complete Cylinder, Incl 2 - 12, 14, Black

1шт.

2

6944

PLUG,Hex Soc, 3/4"-16 ORB

1шт.

3

8969

CYLINDER END CAP

1шт.

4

8963

NUT

1.5"-12 UNF GR5

1шт.

5

9739

PISTON

1шт.

6

8965

SHAFT

1шт.

7

8967

TIE-ROD

4шт.

8

8970

CYLINDER END CAP

1шт.

9

6943

NUT,3/4"-16, G5

8шт.

10

87314803

SET SCREW,Hex Skt, 3/8" - 16 x 1/2"

1шт.

11

84258353

CLEVIS,1 -1/2" - 12

1шт.

12

8966

BARREL,5.00" DIA x 30.00" L

1шт.

13

9737V2

SEAL KIT

Incl 15 - 23

1шт.

14

NSS

NOT SOLD SEPARAT

Included In 1, O-Ring

1шт.
