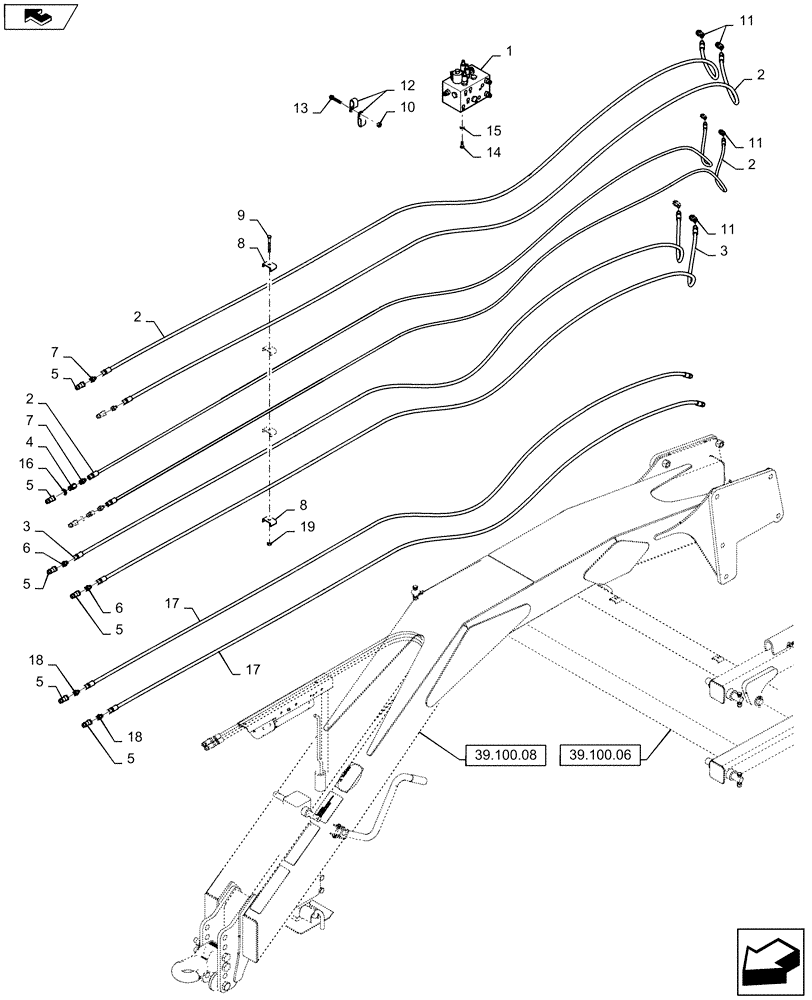

Запчасти Case IH 920 (35.100.04) - PULL FRAME/LIQUID PUMP HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84371608

VALVE

Hyd Manifold

1шт.

2

1268131C2

HYDRAULIC HOSE,9.53mm ID x 5840mm L

3/8" X 185"

4шт.

3

1261441C1

HYDRAULIC HOSE

1/4" X 195"

2шт.

4

25405009

CONTROL VALVE

Throttle Valve, Yellow-S

1шт.

5

25705041

COUPLING

ISO 3/4" SAE

8шт.

6

1272879C1

Orifice Fitting, 9/16"-18 UNF-2A

2шт.

7

128817

HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC

4шт.

8

06200124

BRACKET

8шт.

9

84192885

BOLT

3/8"-16 X 3-3/4", GR5

2шт.

10

9628503

NUT,3/8"-16, G5

1шт.

11

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

6шт.

12

22510700

HOSE CLAMP,15.86mm

Cushioned 3/8" Hose Clamp

1шт.

13

87495290

CARRIAGE BOLT

3/8"-16 X 2.00", Full Thread GR5

1шт.

13

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

14

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

15

80681

LOCK WASHER,5/16"

4шт.

16

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

134209A1

HOSE

1/2" X 345" Long

2шт.

18

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

37 Degree

2шт.

19

88902

NUT,3/8"-16

1шт.
