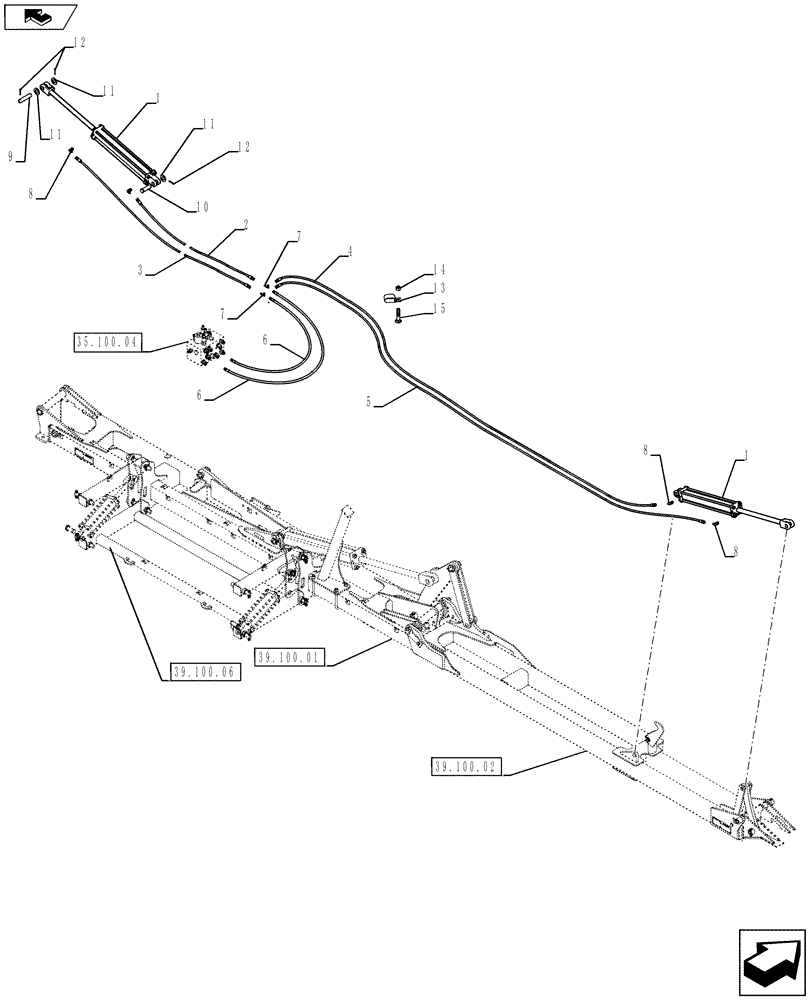

Запчасти Case IH 920 (35.100.03) - OUTER WING HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84366455

CYLINDER,Double Acting, 38.1mm Rod, 609.6mm Stroke

Hyd, 3.00" X 24.00"

2шт.

2

1254528C2

HYDRAULIC HOSE

Left Outer Base, 1/4" X 225"

1шт.

3

227187A1

HOSE

Left Outer Rod, 1/4" X 260"

1шт.

4

810939C1

HOSE

Right Outer Base, 1/4" X 210"

1шт.

5

1261441C1

HYDRAULIC HOSE

Right Outer Rod, 1/4" X 230"

1шт.

6

97479C1

HYDRAULIC HOSE,6.35 mm ID x 2159.00 mm, SAE 100 R1

1/4" X 85"

2шт.

7

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

O-Ring Not Incl

2шт.

8

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

9

84468949

PIN

2шт.

10

84156994

CLEVIS PIN

2шт.

11

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

6шт.

12

88182

COTTER PIN,1/4" OD x 2" L

6шт.

13

22510700

HOSE CLAMP,15.86mm

Cushioned 3/8" I.D. Clamp

1шт.

14

9628503

NUT,3/8"-16, G5

1шт.

15

87495290

CARRIAGE BOLT

3/8"-16 X 2.00", Full Thread GR5

1шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.
