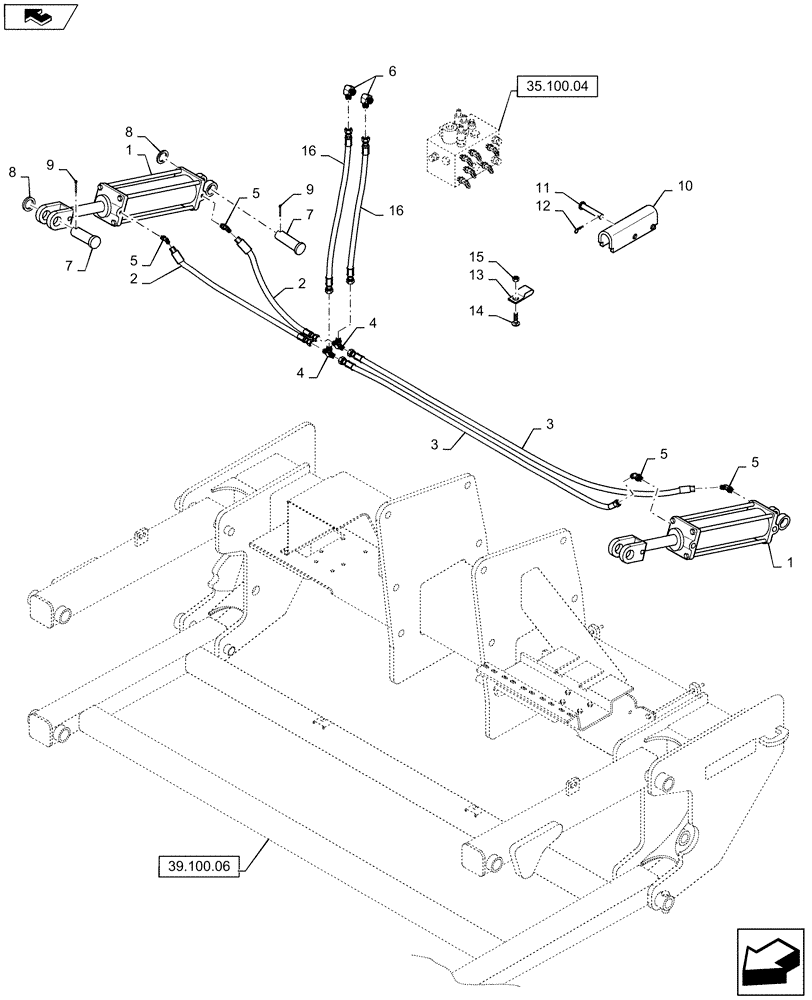

Запчасти Case IH 920 (35.100.02) - LIFT LINK HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84394189

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 304.8mm Stroke

3.5" X 12", 3000psi

2шт.

2

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

0.375" X 19.00" FL

2шт.

3

95778C1

HYDRAULIC HOSE,9.65 mm ID x 1778.00 mm, SAE 100 R1

2шт.

4

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

O-Ring Not Incl

2шт.

5

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

4шт.

6

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

2шт.

7

84156993

PIN

Clevis, 1-1/4" X 3-1/2" HTS ZN

4шт.

8

87613302

WASHER,1.31" ID x 1.98" OD x 0.18" Thk

1.312" X 1.984" X 0.18" HTS ZND HDM

4шт.

9

88182

COTTER PIN,1/4" OD x 2" L

4шт.

10

84383848

PLATE

Cylinder Stop

2шт.

11

14810251

HEADED PIN,15.88mm OD x 96.77mm L

0.625" X 3.25" ZND

2шт.

12

14720411

COTTER PIN

PIN, COTTER 1/8" X 2.00" Hair Pin ZP

2шт.

13

22510700

HOSE CLAMP,15.86mm

Cushioned 3/8" I.D. Clamp

1шт.

14

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

14

87495290

CARRIAGE BOLT

0.375"-16 X 2.00", GR5 ZND

1шт.

15

9628503

NUT,3/8"-16, G5

1шт.

15

88902

NUT,3/8"-16

1шт.

16

1285380C2

HYDRAULIC HOSE

Bulk Roll, 3/8"ID, Cut To Fit

2шт.
