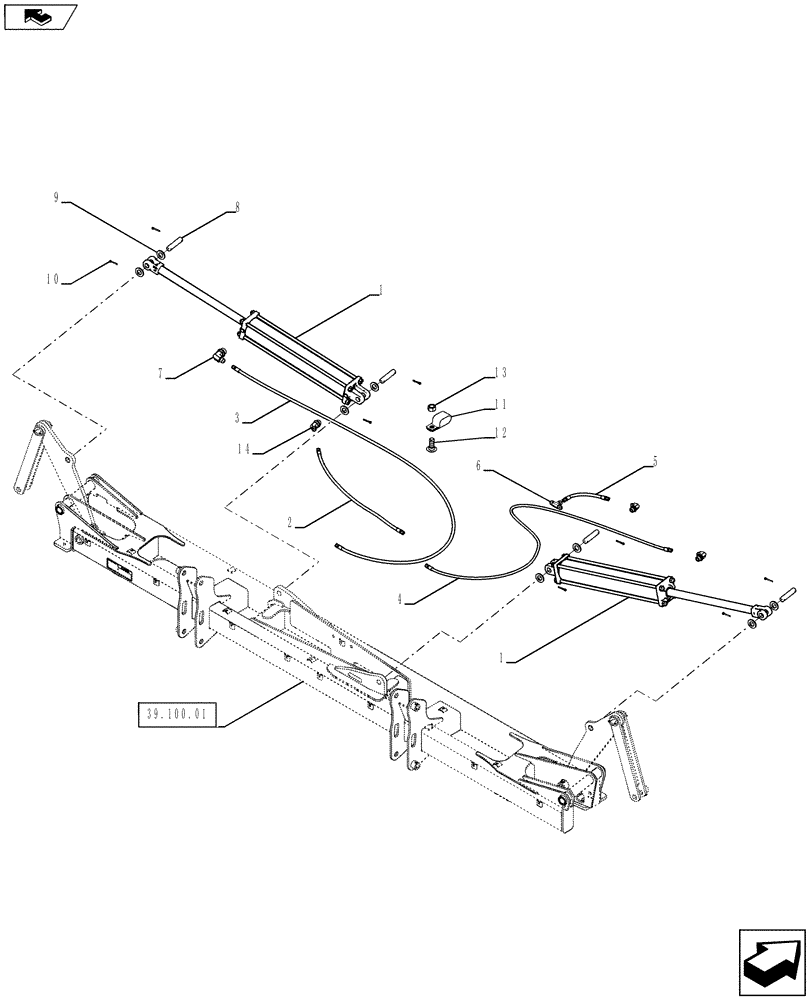

Запчасти Case IH 920 (35.100.01) - INNER WING HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

84399991

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 762mm Stroke

5.00" X 30.00", Black

2шт.

2

1251944C1

HYDRAULIC HOSE

0.375" X 41.0"

1шт.

3

139655C2

HYDRAULIC HOSE

0.375" X 155.0", Coiled

1шт.

4

139519C2

HYDRAULIC HOSE

0.375" X 135.0", Coiled

1шт.

5

147887C1

HYDRAULIC HOSE,9.53mm ID x 485mm L

0.375" X 19.0"

1шт.

6

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

O-Ring Not Incl

1шт.

7

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

3шт.

8

84468949

PIN

4шт.

9

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

1.375" X 2.50" X 0.165" CST ZND

8шт.

10

88182

COTTER PIN,1/4" OD x 2" L

8шт.

11

22510700

HOSE CLAMP,15.86mm

Cushioned 3/8" I.D. Clamp

1шт.

12

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

1шт.

12

87495290

CARRIAGE BOLT

SSQNK 3/8-16 X 2 Full GR5

1шт.

13

9628503

NUT,3/8"-16, G5

1шт.

13

88902

NUT,3/8"-16

1шт.

14

84313

ELBOW,45 Degree, 9/16"-18, 37 Degree x 3/4"-16, O-Ring

1шт.
