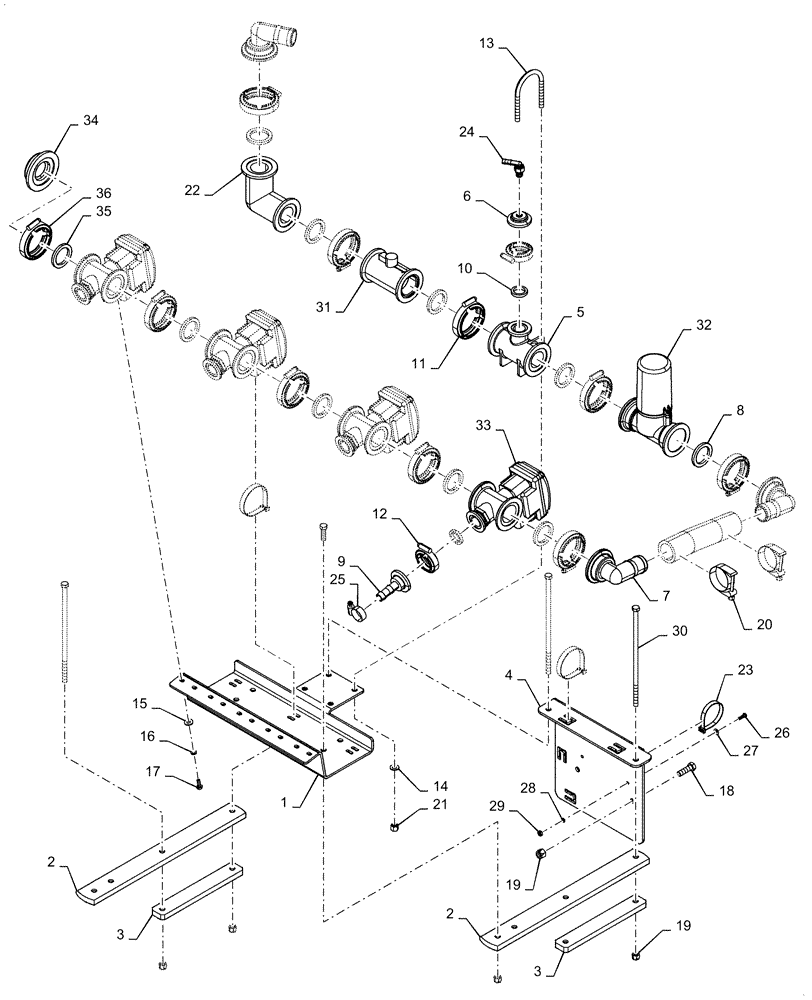

Запчасти Case IH 920 (78.110.10) - MANIFOLD METER WITH SHUTOFF VALVE Invalid section

1

47737134

BRACKET

Valve Manifold

1шт.

2

47376975

MOUNTING PLATE

2шт.

3

84377333

PLATE

Bolt Strap

2шт.

4

47736778

BRACKET

Node 920

1шт.

5

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

1шт.

6

BN324133

PLUG,1" Flange x 1/4" Female NPT, Poly

1шт.

7

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Standard

3шт.

8

BN303204

GASKET,1-1/2" EPDM Gasket

6шт.

9

408351A1

FITTING,1" Flange x 3/4" Hose Barb

1 X 3/4"

5шт.

10

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1"

6шт.

11

BN303199

CLAMP,2" Flange

6шт.

12

BN303203

CLAMP,1" Flange

1"

6шт.

13

87413269

U-BOLT

3/8" X 2.87

2шт.

14

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

15

80701

WASHER,0.31" ID x 0.73" OD x 0.07" Thk

10шт.

16

80682

LOCK WASHER,1/4"

10шт.

17

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

10шт.

18

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

7шт.

19

88902

NUT,3/8"-16

11шт.

20

BN53811

CLAMP

T-Bolt 1.93-2.18

2шт.

21

86985855

LOCK NUT

4шт.

22

BN304318

COUPLING,90 Degree Elbow, 2" Flange x 2" Flange, Poly

1шт.

23

84360212

CABLE TIE,294.2mm L, Nylon

8шт.

24

84325033

FITTING,1/4" Male Thread x 3/8" 90 Degree Hose Barb

1шт.

25

514920

HOSE CLAMP,20.6mm - 38.1mm, Worm Gear

5шт.

26

14520303

SCREW,Sl Pan Hd, #12 - 24 x 3/4"

4шт.

27

80707

WASHER,0.25" ID x 0.56" OD x 0.05" Thk

4шт.

28

9602225

LOCK WASHER,#12

4шт.

29

86512084

NUT,#12-24

4шт.

30

280750

BOLT,Hex, 3/8" - 16 x 10", Gr 5

4шт.

31

87271267

MEASURING INSTRUMENT

Flow Meter

1шт.

32

47698132

VALVE

Control Butterfly 1.5"

1шт.

33

87632830

SHUT-OFF VALVE

3 Pin

1шт.

34

BN304317

PLUG,2" Flange, Poly

1шт.

35

BN303204

GASKET,1-1/2" EPDM Gasket

1шт.

36

BN303199

CLAMP,2" Flange

1шт.
