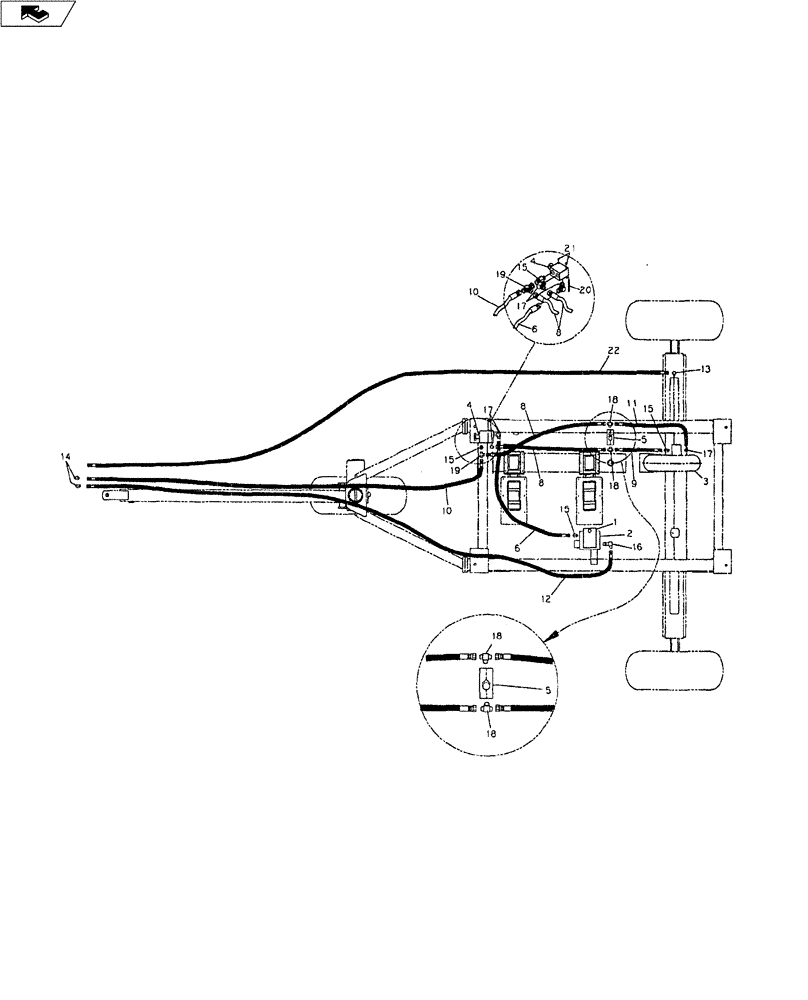

Запчасти Case IH 9000 (35.100.01) - SINGLE DRIVE HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25205001

HYDRAULIC MOTOR

1шт.

2

25205002

CHECK VALVE

Flow Control

1шт.

3

05401800

FAN

REM HE w/Rexroth Motor Assy.

1шт.

4

25401720

CONTROL VALVE

Selector 3-Way

1шт.

5

25401710

CHECK VALVE

1шт.

6

25601272

HOSE ASSY.

3/4" Hydraulic x 72" Long

1шт.

7

25601218

HOSE

3/4" Hydraulic x 19" Long (Not Shown)

1шт.

8

25601248

HOSE ASSY.

3/4" Hydraulic x 48" Long

2шт.

9

25601226

HOSE

3/4" Hydraulic x 26" Long

1шт.

10

25601225

3/4" Hydraulic x 225" Long

1шт.

11

25601241

HOSE

3/4" Hydraulic x 41" Long

1шт.

12

25601275

HOSE ASSY.

3/4" Hydraulic x 275" Long

1шт.

13

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

9/16" SAEM x 3/4" JICM

1шт.

14

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

3/4" SAEM x 1-1/16" JICM ST

2шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16" SAEM x 1-1/16" JICM

3шт.

16

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16" SAEM X 1-1/16" JICM 90° Long

1шт.

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16" SAEM x 1-1/16" JICM 90°

4шт.

18

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16"SAEM x (2) 1-1/16" JICM

2шт.

19

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

1-1/16"JlCM ( 2 ) X 1-1/16" JICF Swivel

1шт.

20

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8" x 3" Hex., Gd. 5

2шт.

21

232-4146

NUT,3/8"-16, GC

3/8" Stover

2шт.

22

25610683

HYDRAULIC HOSE

3/8" x 275" Long

1шт.
