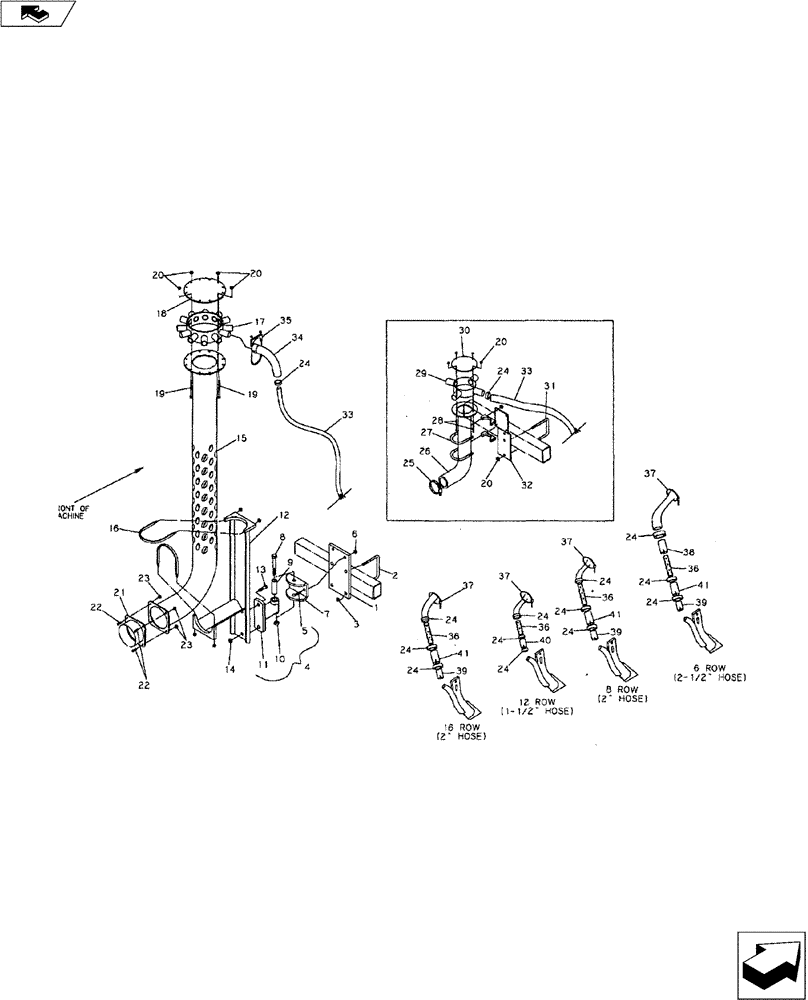

Запчасти Case IH 9000 (75.120.01) - MANIFOLD AND HOSES (75) - SOIL PREPARATION

1

05402423

Pivot

1шт.

2

16312240

U-BOLT

3/4"

2шт.

3

425-1012

NUT,3/4"-10, G5

Hex.

4шт.

4

05402425

Incldes Ref. 7-11

1шт.

5

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

6

425-1010

NUT,5/8"-11, G5

Hex.

2шт.

7

04660320

BAR ASSY.

Bracket

1шт.

8

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

9

04660340

TUBE,0.81" ID, 1.25" OD

Pivot Tube

1шт.

10

232-41412

LOCK NUT,3/4"-10, GC

Stover

1шт.

11

05402420

Weldment

1шт.

12

05401680

MOUNTING PARTS

Primary Manifold

1шт.

13

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

2шт.

14

425-1012

NUT,3/4"-10, G5

Hex.

2шт.

15

05401700

ROD

Primary Manifold Riser

1шт.

16

05401652

U

2шт.

17

05401750

MANIFOLD

6 Port x 2-1/2" Dia.

1шт.

17

05401760

MANIFOLD

8 Port x 2" Dia.

1шт.

17

05401725

MANIFOLD

4 Port x 3" Dia.

1шт.

17

05401710

MANIFOLD

12 Port x 1-1/2" Dia.

1шт.

18

05401724

MANIFOLD

Cover

1шт.

19

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

20шт.

20

232-4146

NUT,3/8"-16, GC

3/8" Hex.

20шт.

21

05401640

COUPLING

Hose

1шт.

22

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

1шт.

23

14090608

SPECIAL NUT

3/8" Stainless Hex.

1шт.

24

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Gear (1-1/2" Hose)

1шт.

24

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

Gear (2" Hose)

1шт.

25

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

Gear(2-1/2"-3" Hose)

1шт.

26

05401747

RISER

Secondary Manifold, 3" Dia.

1шт.

27

05401723

U-BOLT

Clamp

1шт.

28

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

NC

8шт.

29

05401735

MANIFOLD

Secondary 4 Port x 3" Dia.

1шт.

30

05401733

MANIFOLD

Secondary Cover

1шт.

31

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8"

1шт.

32

05401714

PLATE

Mounting Bracket

1шт.

33

01410150

HOSE

1-1/2" x 100'

1шт.

33

01410160

2" x 100'

1шт.

33

25740100

2-1/2" x 100'

1шт.

33

01410170

3" x 100'

1шт.

34

05401769

ELBOW

1-1/2"

1шт.

34

05401771

ELBOW

2"

1шт.

34

05401 773

2-1/2"

1шт.

34

05401775

ELBOW

3"

1шт.

35

05401660

CLAMP

1-1/2" U

1шт.

35

05401662

CLAMP

2" U

1шт.

35

C1013060

2-1/2" U

1шт.

35

05401723

U-BOLT

3" U

1шт.

36

05401765

TUBE

Diffuser, 1-1/2"

1шт.

36

C1026796

TUBE

Diffuser, 2"

1шт.

37

30007032

CABLE TIE

CABLE STRAP 30"

1шт.

38

05401767

2" Hose

1шт.

39

05401766

1-1/2" Hose

1шт.

40

05401763

1-1/2" x 6"

1шт.

41

05401764

2" x 6"

1шт.
