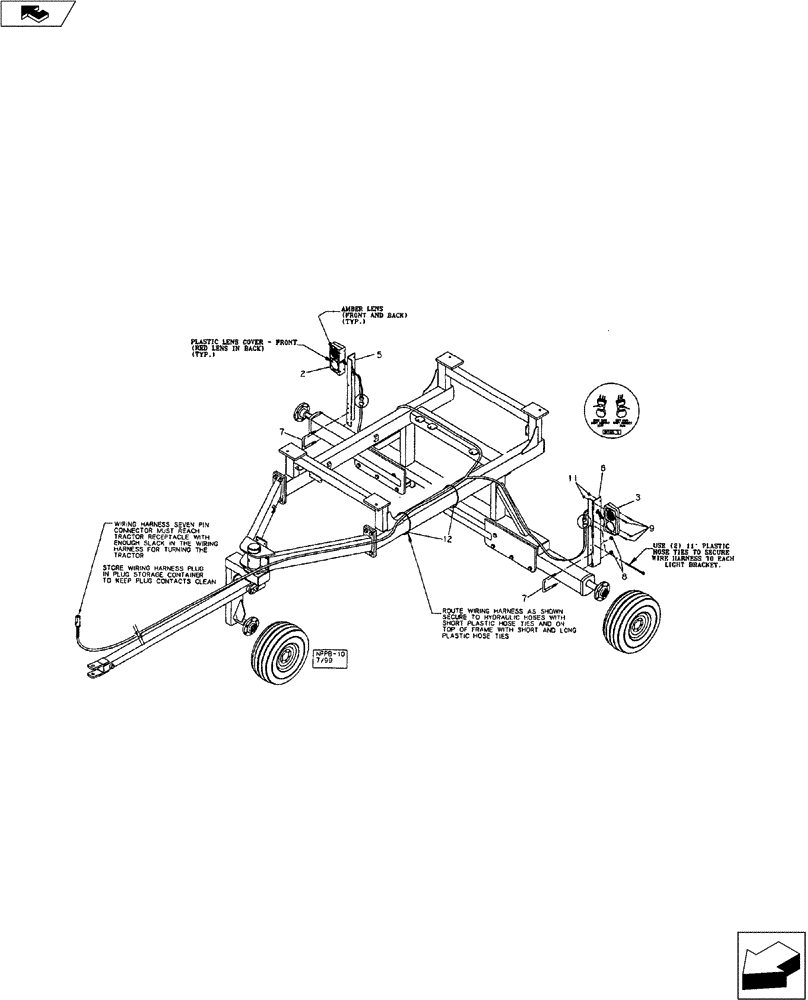

Запчасти Case IH 9000 (55.404.01) - WARNING AND TAIL LIGHT KIT (55) - ELECTRICAL SYSTEMS

1

27601251

WIRE HARNESS

(Not Shown)

1шт.

2

27601212

LIGHT ASSY.

Fixture, RH

1шт.

3

27601213

LIGHT ASSY.

Fixture, LH

1шт.

4

27601214

HOLDER

Storage (Not Shown)

1шт.

5

05402180

BAR

Light Bracket, RH

1шт.

6

05402181

BAR

Light Bracket, LH

1шт.

7

16312300

3/4" x 6" x 7-1/2"

2шт.

8

425-1012

NUT,3/4"-10, G5

NC Hex.

4шт.

9

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

NC

8шт.

10

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

NC (Not Shown)

4шт.

11

280129

NUT,1/4"-20

NC Hex.

12шт.

12

NSS

NOT SOLD SEPARAT

30" Hose Tie

8шт.

13

NSS

NOT SOLD SEPARAT

20" Hose Tie (Not Shown)

24шт.

14

27601275

Extension Wiring Harness (Not Shown)

1шт.
