(35.100.02) - DUAL DRIVE HYDRAULICS

Запчасти Case IH 9000 (35.100.02) - DUAL DRIVE HYDRAULICS (35) - HYDRAULIC SYSTEMS

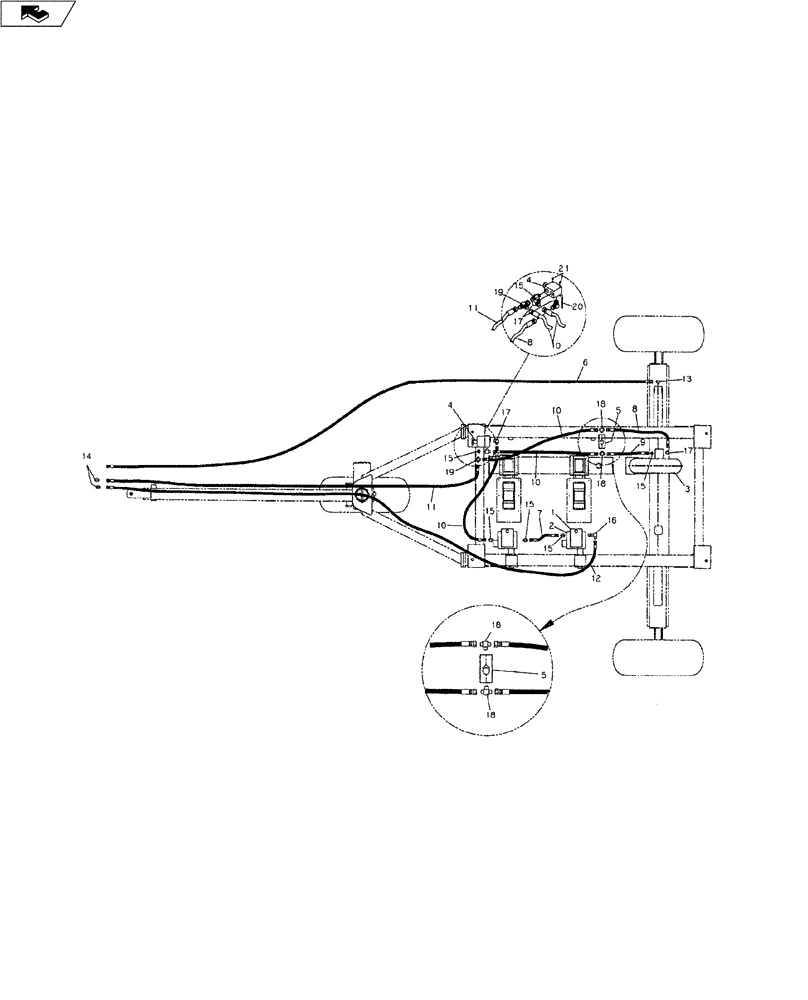

Схема запчастей Case IH 9000 - (35.100.02) - DUAL DRIVE HYDRAULICS (35) - HYDRAULIC SYSTEMS
19
15
10
15
15
1
4
5
10
8
14
18
9
18
12
11
8
10
2
11
15
5
15
16
15
10
18
3
9
10
21
6
4
13
20
19
17
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

25205001

HYDRAULIC MOTOR

2шт.

2

25205002

CHECK VALVE

Flow Control

2шт.

3

05401800

FAN

REM HE w/Rexroth Motor Assy.

1шт.

4

25401720

CONTROL VALVE

Selector 3-Way

1шт.

5

25401710

CHECK VALVE

1шт.

6

25610683

HYDRAULIC HOSE

3/8" x 275" Long

1шт.

7

25601218

HOSE

3/4" Hydraulic x 19" Long

2шт.

8

25601248

HOSE ASSY.

3/4" Hydraulic x 48" Long

1шт.

9

25601226

HOSE

3/4" Hydraulic x 26" Long

1шт.

10

25601248

HOSE ASSY.

3/4" Hydraulic x 48" Long

1шт.

11

25601225

3/4" Hydraulic x 225" Long

1шт.

12

25601275

HOSE ASSY.

3/4" Hydraulic x 275" Long

1шт.

13

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

JICM

1шт.

14

218-5353

HYD CONNECTOR,1 1/16"-12, 37 Degree x 3/4"-16, O-Ring

JICM ST

2шт.

15

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

JICM

5шт.

16

218-5553

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

JICM Long

1шт.

17

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

JICM Long

4шт.

18

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

JICM

2шт.

19

218-5221

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Run

SAEF Swivel

1шт.

20

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

21

232-4146

NUT,3/8"-16, GC

Stover

2шт.
