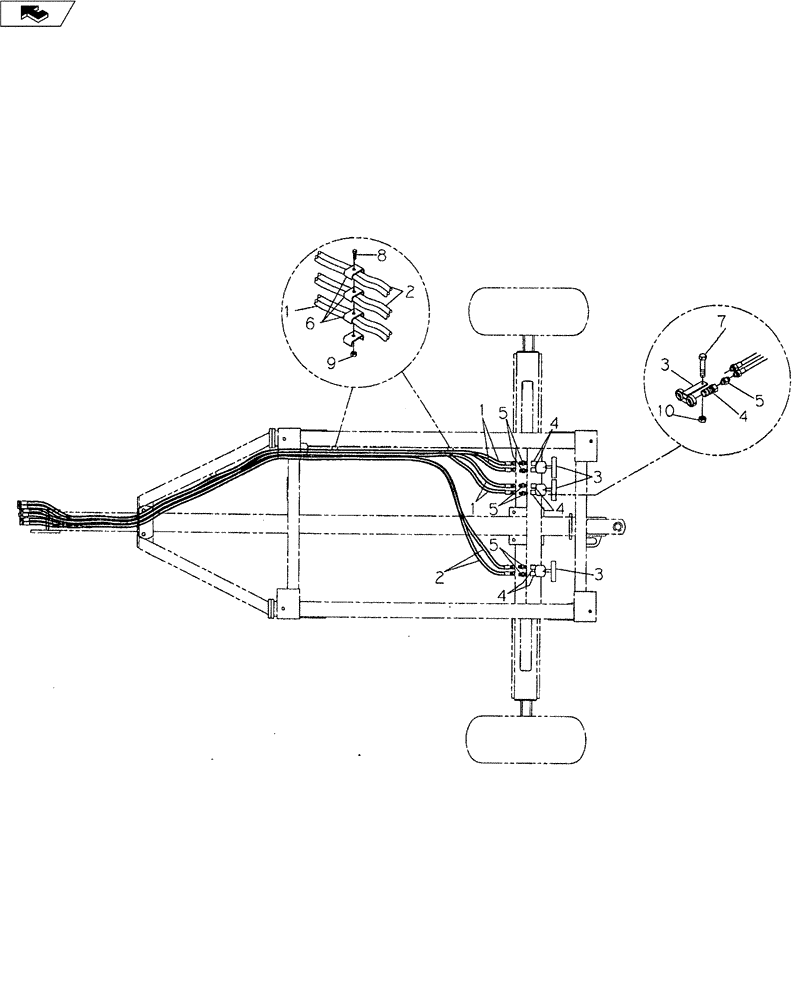

Запчасти Case IH 9000 (35.100.01) - LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

25610901

HYDRAULIC HOSE

1/2" x 196" Long

4шт.

2

25610902

HOSE ASSY.

1/2" x 230" Long

2шт.

3

25705012

COUPLING

Breakaway Frame

3шт.

4

25705021

COUPLING

ISO Female

6шт.

5

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

JICM

6шт.

6

06200125

HOSE CLAMP

15шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

NC

3шт.

8

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

NC

5шт.

9

425-106

NUT,3/8"-16, Cl 5

NC Hex.

5шт.

10

232-4148

NUT,1/2"-13, GC

NC Hex.

3шт.

11

NSS

NOT SOLD SEPARAT

30" Hose Tie (Not Shown)

1шт.
