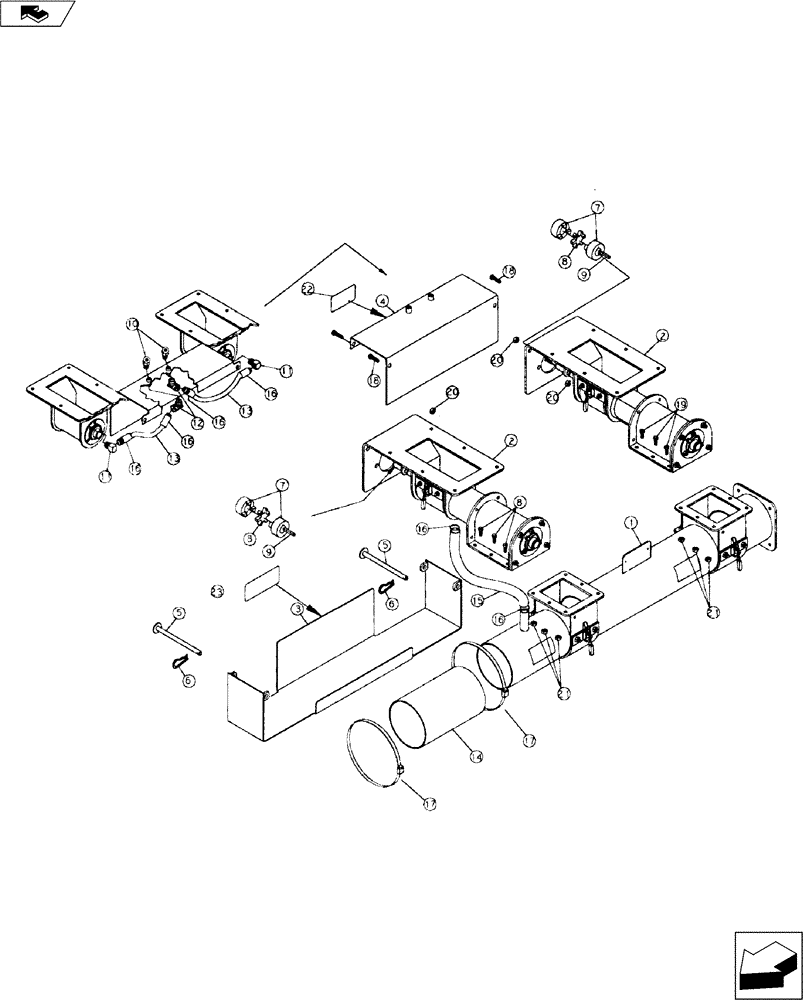

Запчасти Case IH 9000 (29.200.02) - DUAL DRIVE (29) - HYDROSTATIC DRIVE

1

05401600

RIGID TUBE

Air

1шт.

2

05401200

AUGER

Meter Assembly

2шт.

3

05401270

1шт.

4

05401280

1шт.

5

14808420

2шт.

6

14720411

COTTER PIN

PIN, COTTER 1/8" x 2" Hair

2шт.

7

21450100

COUPLING

Jaw

4шт.

8

21450101

COUPLING

Jaw Insert

2шт.

9

NSS

NOT SOLD SEPARAT

1/4" X 1" Key

3шт.

10

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

11

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

2шт.

12

25701205

1/8" NPTM x 1/8" NPTF Swivel

2шт.

13

15323010

HOSE

Grease

2шт.

14

25680610

HOSE

6" Fan Connection

1шт.

15

25631602

1" I.D. x 36"

1шт.

16

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

17

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

18

16908069

1/2" x 1-1/2" NC Hex., Stainless

4шт.

19

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

NC

12шт.

20

14090808

1/2" NC Hex., Stainless

4шт.

21

14090608

SPECIAL NUT

3/8" NC Hex., Stainless

12шт.

22

18534326

Warning Sign

1шт.

23

18534281

Warning Sign

1шт.
