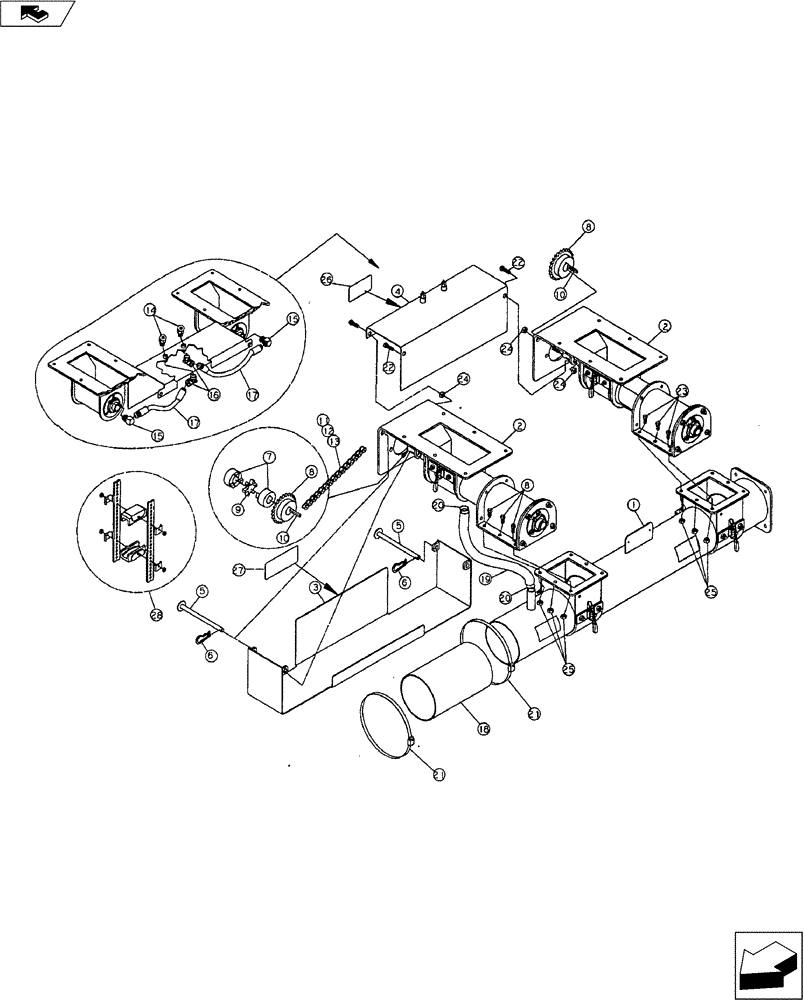

Запчасти Case IH 9000 (29.200.01) - SINGLE DRIVE (29) - HYDROSTATIC DRIVE

1

05401600

RIGID TUBE

Air

1шт.

2

05401200

AUGER

Meter Assembly

1шт.

3

05401270

1шт.

4

05401280

1шт.

5

14808420

2шт.

6

14720411

COTTER PIN

PIN, COTTER 1/8" x 2" Hair

2шт.

7

21450100

COUPLING

Jaw

2шт.

8

21640241

SPROCKET

4024

2шт.

9

21450101

COUPLING

Jaw Insert

1шт.

10

NSS

NOT SOLD SEPARAT

1/4" X 1" Key

3шт.

11

21204040

CHAIN (AG)

#40 Stainless Roller 62"

1шт.

12

21214020

#40 Stainless Connecting

1шт.

13

21214021

#40 Stainless Offset

1шт.

14

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

2шт.

15

219-439

ADAPTER,90 Degree, 1/4"-1/8 NPTF

2шт.

16

25701205

1/8" NPTM x 1/8" NPTF Swivel

2шт.

17

15323010

HOSE

Grease

2шт.

18

25680610

HOSE

6" Fan Connection

1шт.

19

25631602

1" I.D. x 36"

1шт.

20

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

2шт.

21

214-14104

HOSE CLAMP,155.45mm - 177.8mm

2шт.

22

16908069

1/2" x 1-1/2" NC Hex., Stainless

4шт.

23

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

NC

12шт.

24

14090808

1/2" NC Hex., Stainless

4шт.

25

14090608

SPECIAL NUT

3/8" NC Hex., Stainless

12шт.

26

18534326

Warning Sign

1шт.

27

18534281

Warning Sign

1шт.

28

21214025

IDLER

Snap

1шт.
