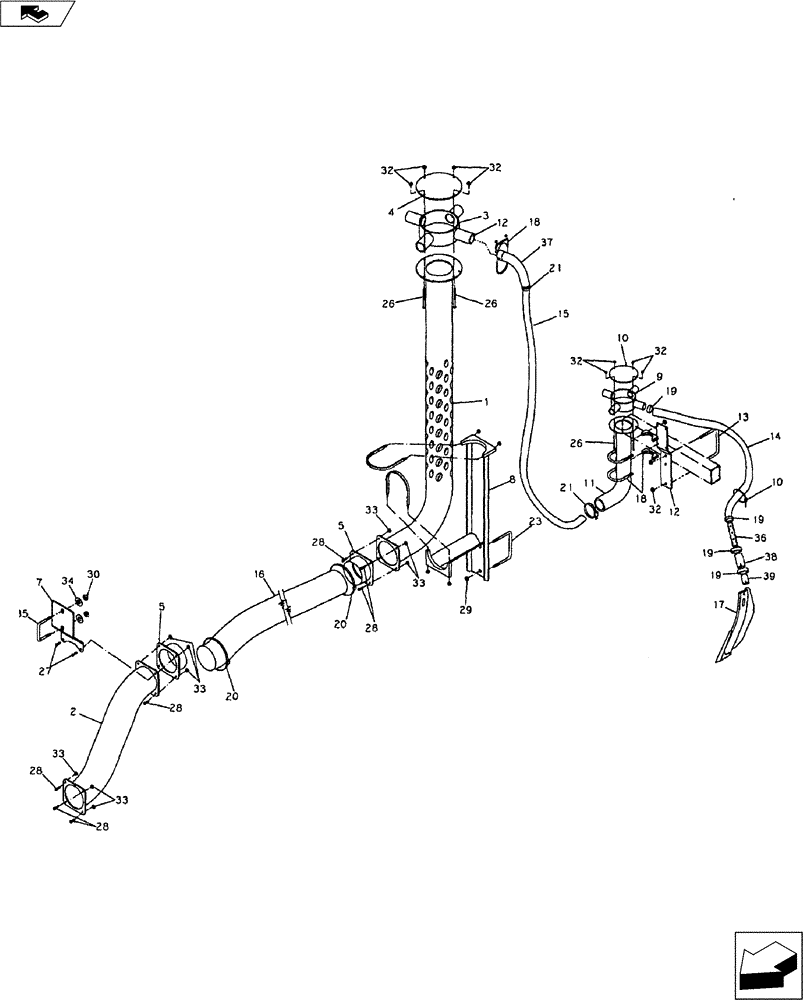

Запчасти Case IH 9000 (75.120.03) - 16 ROW PULL BETWEEN MANIFOLD (75) - SOIL PREPARATION

1

05401700

ROD

Primary Manifold Riser

1шт.

2

05401630

ELBOW

Double

1шт.

3

05401725

MANIFOLD

4 Port 3"

1шт.

4

05401724

MANIFOLD

Cover

1шт.

5

05401640

COUPLING

Hose

2шт.

7

05401671

1шт.

8

05401680

MOUNTING PARTS

Primary Manifold

1шт.

9

05401735

MANIFOLD

4 Port Secondary

4шт.

10

05401733

MANIFOLD

Secondary Cover

4шт.

11

05401747

RISER

Secondaw Manifold 3"

4шт.

12

05401714

PLATE

Secondaw Manifold Mount

4шт.

13

16309101

U-BOLT,3/8" - 16, Square, 4" W x 6" L

BOLT "U" 3/8"

8шт.

14

01410160

2" I.D.

1шт.

15

01410170

3" I.D.

1шт.

16

25680612

HOSE

6" x 12" Air

1шт.

17

33607110

1.5" Tube CC Tuff-One Dry

1шт.

17

33607130

KNIFE

Strip Till, Dry & NH3 Combination

1шт.

18

05401723

U-BOLT

Clamp

8шт.

19

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

64шт.

20

214-21186

CLAMP,#186, 6.68"-7.00", T-Bolt

2шт.

21

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

8шт.

22

30007032

CABLE TIE

CABLE STRAP 30" (Not Shown)

1шт.

23

16312240

U-BOLT

3/4" x 6.18"

1шт.

26

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

NC

20шт.

27

113-2236

BOLT,Hex, 3/8" - 16 x 1-1/2", SST

NC

2шт.

28

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

NC

10шт.

29

232-41412

LOCK NUT,3/4"-10, GC

NC Stover

2шт.

30

231-41410

NUT,5/8"-11, GB

NC Stover

2шт.

32

232-4146

NUT,3/8"-16, GC

NC Hex.

20шт.

33

14090608

SPECIAL NUT

3/8" NC Hex., Stainless

14шт.

34

17411012

WASHER

5/8" Heavy

2шт.

35

16310009

U-BOLT

BOLT "U" 5/8" x 4" 4-1/2"

1шт.

36

C1026796

TUBE

Diffuser

16шт.

37

05401775

ELBOW

3"

4шт.

38

05401764

2" X 6"

16шт.

39

05401766

1-1/2" Adaptor

16шт.
