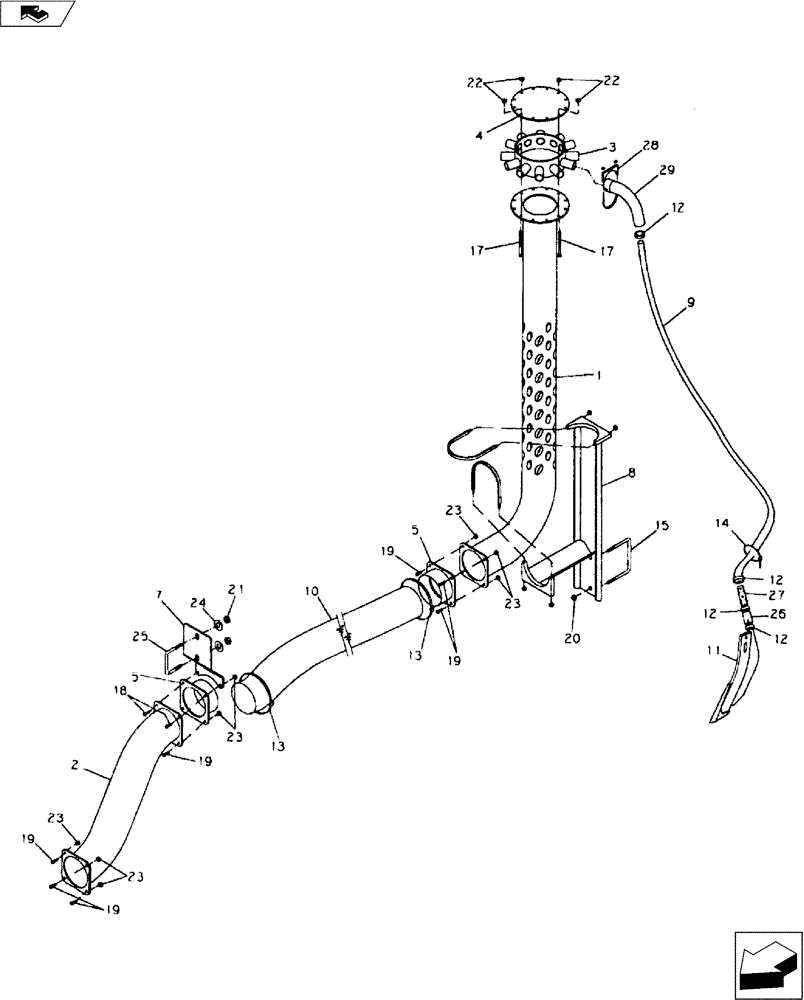

Запчасти Case IH 9000 (75.120.02) - 12 ROW PULL BETWEEN MANIFOLD (75) - SOIL PREPARATION

1

05401700

ROD

Primary Manifold Riser

1шт.

2

05401630

ELBOW

Double

1шт.

3

05401710

MANIFOLD

12 Port 1.5"

1шт.

4

05401724

MANIFOLD

Cover

1шт.

5

05401640

COUPLING

Clamp Assembly

2шт.

7

05402117

1шт.

8

05401680

MOUNTING PARTS

Primary Manifold

1шт.

9

01410150

HOSE

1-1/2" I.D.

1шт.

10

25680612

HOSE

6"x 12" Air

1шт.

11

33607110

1.5" CC Tuff - One II Dry Knife

1шт.

11

33607130

KNIFE

Strip Till, Dry & NH3 Combination

1шт.

12

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

24шт.

13

214-21186

CLAMP,#186, 6.68"-7.00", T-Bolt

2шт.

14

30007032

CABLE TIE

CABLE STRAP 30"

1шт.

15

16312240

U-BOLT

3/4" x 6.18"

1шт.

17

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

NC

4шт.

18

113-2236

BOLT,Hex, 3/8" - 16 x 1-1/2", SST

NC

2шт.

19

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

NC

10шт.

20

232-41412

LOCK NUT,3/4"-10, GC

NC

2шт.

21

232-41410

LOCK NUT,5/8"-11, GC

NC Stover

2шт.

22

232-4146

NUT,3/8"-16, GC

NC Hex.

4шт.

23

14090608

SPECIAL NUT

3/8" NC Hex., Stainless

14шт.

24

17411012

WASHER

5/8" Heavy

2шт.

25

16310009

U-BOLT

BOLT "U" 5/8" x 4" x 4-1/2"

4шт.

26

05401763

1-1/2" 6"

12шт.

27

05401765

TUBE

1-1/2" Diffuser

12шт.

28

05401660

CLAMP

1-1/2"

12шт.

29

05401769

ELBOW

1-1/2"

12шт.
