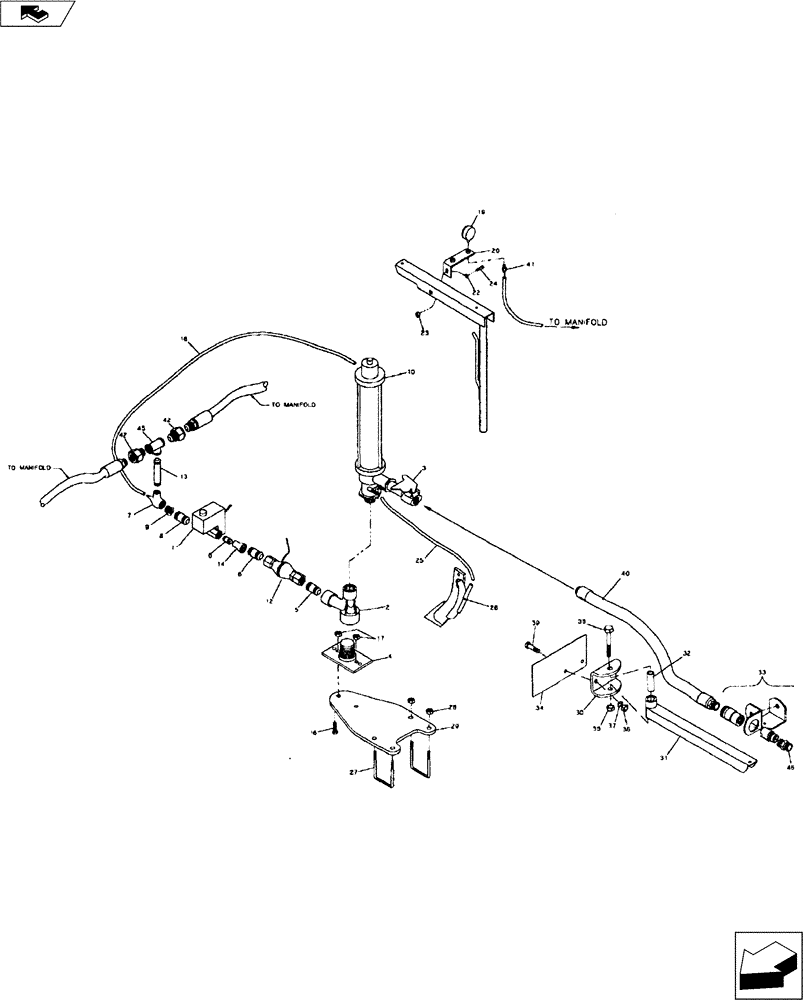

Запчасти Case IH 9000 (75.120.01) - MID-TECH NH3 CONTROL SYSTEM W/PLUMBING FOR DUAL MANIFOLD (75) - SOIL PREPARATION

1

27701220

COUPLING

NH3 Plumbing Kit (Includes Ref. 1-7)

1шт.

2

27701225

Sweep Elbow Mtg.

1шт.

3

27701222

Manual ON/OFF

1шт.

4

27701224

Mounting

1шт.

5

15011256

1-1/4" x 4"

1шт.

6

15011251

1-1/4" x 3"

1шт.

7

NSS

NOT SOLD SEPARAT

Reducer Tee

1шт.

8

NSS

NOT SOLD SEPARAT

1" Nipple

1шт.

9

15031259

ADAPTER

1" x 1-1/4" Reducer Bushing

1шт.

10

NSS

NOT SOLD SEPARAT

Continental Equalizer

1шт.

11

27701201

NH3 Control

1шт.

12

27701231

NH3 Flow

1шт.

13

15011011

FITTING

1" NPT x 8"

1шт.

14

NSS

NOT SOLD SEPARAT

Reducer Coupler

1шт.

16

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

17

425-1010

NUT,5/8"-11, G5

Hex.

2шт.

18

NSS

NOT SOLD SEPARAT

A.A. Hose

1шт.

19

34599060

GAUGE

A.A.

2шт.

20

04681830

BRACKET

Gauge

1шт.

22

492-11031

LOCK WASHER,5/16"

3/8" Flat

1шт.

23

425-106

NUT,3/8"-16, Cl 5

NC Hex.

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

NC

1шт.

25

25631204

3/4" A.A.

2шт.

26

27701226

Weld On Vapor

2шт.

27

16312020

U-BOLT

BOLT "U" 3/4" x 4" x 7-1/2"

2шт.

28

425-1012

NUT,3/4"-10, G5

3/4" Hex.

2шт.

29

04683670

Mounting

1шт.

30

04660320

BAR ASSY.

Bracket

1шт.

31

04660330

CHANNEL

Extension Pivot Mount

1шт.

32

04660340

TUBE,0.81" ID, 1.25" OD

Pivot Tube

1шт.

33

02600040

FITTING

1-1/4" Quic Coupler Assembly

1шт.

34

04681850

SUPPORT

Bracket/Sign Combo

1шт.

35

232-41412

LOCK NUT,3/4"-10, GC

NC Stover

1шт.

36

425-1010

NUT,5/8"-11, G5

NC Hex.

2шт.

37

492-11062

BEARING WASHER,5/8"

2шт.

38

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

NC

1шт.

39

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

NC

2шт.

40

25675320

HOSE,1.25" ID x 32.00"

1шт.

41

15040251

HYD CONNECTOR

1/4"NPT x 3/8" Hose Barb

1шт.

42

15081006

COUPLING

1" Swivel Pipe

2шт.

45

15051001

1" NPT

1шт.

46

34314100

FITTING

1-3/4" ACME x 1-1/4" NPTM

1шт.
