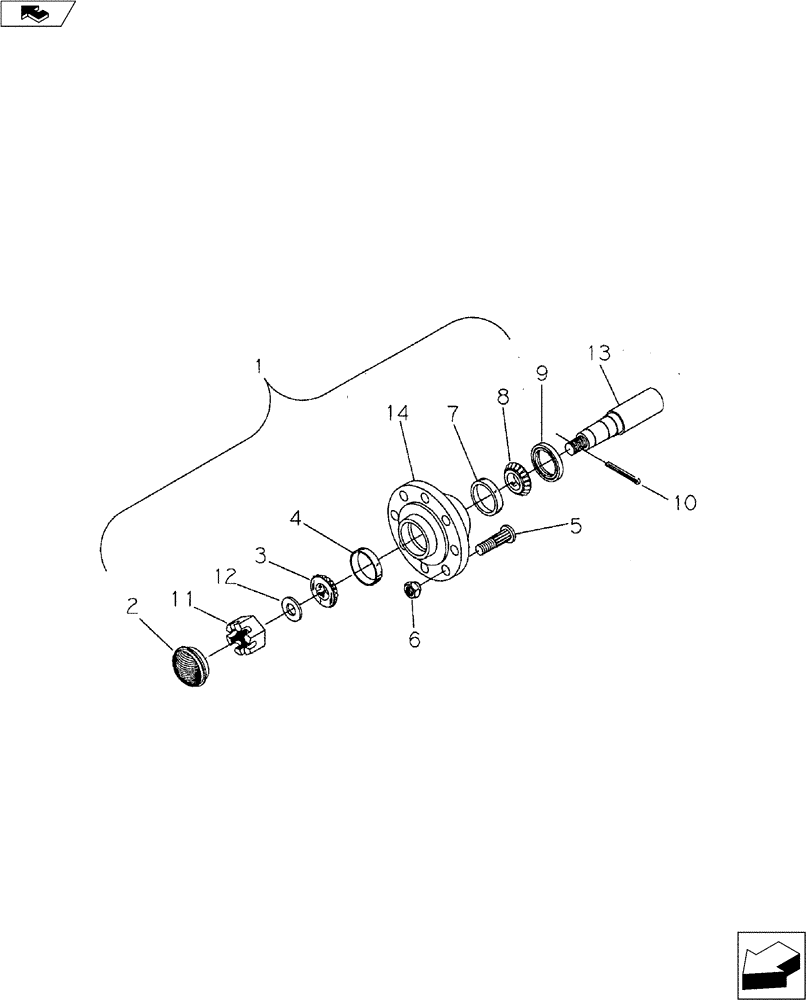

Запчасти Case IH 9000 (44.100.01) - HUB & SPINDLE (44) - WHEELS

1

28150800

HUB ASSY.

50-8, 8-Bolt

1шт.

2

28460800

DUST CAP

Hub

1шт.

3

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

1.62" Bore - Timken #LM501349

1шт.

4

663558R1

BEARING CUP

2.89" O.D. - Timken #LM501310

1шт.

5

16410087

STUD

5/8" x 2-1/4" NF Wheel

8шт.

6

554480R1

WHEEL NUT

5/8" NF Wheel

8шт.

7

376463C1

BEARING CUP

3.22" O.D Cup - Timken #JLM104910

1шт.

8

21872005

ROLLER BEARING,50 mm ID

2.00" Bore - Timken #LM104948

1шт.

9

21932502

SEAL

2.50" O.D., Carbox - CR #535150

1шт.

10

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

11

425-1316

NUT,1"-14, G5

NF

1шт.

12

17916100

WASHER

1" Dia.

1шт.

13

NSS

NOT SOLD SEPARAT

Spindle

1шт.

14

NSS

NOT SOLD SEPARAT

50-8 Hub With Cups

1шт.

14

28050885

STUB AXLE/STEERING S

50-8 Hub

1шт.
