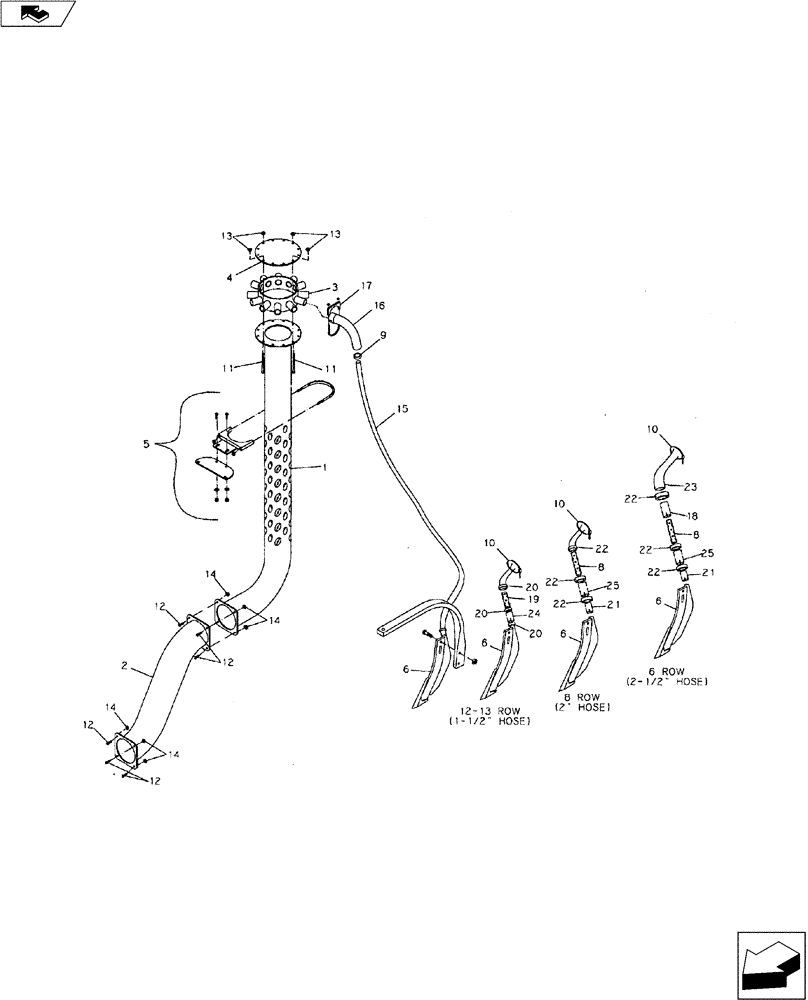

Запчасти Case IH 9000 (75.120.03) - MANIFOLD (75) - SOIL PREPARATION

1

05401700

ROD

Primary Manifold Riser

1шт.

2

05401630

ELBOW

Double

1шт.

3

05401750

MANIFOLD

6 Port 2.5"

1шт.

3

05401760

MANIFOLD

8 Port 2"

1шт.

3

05401710

MANIFOLD

12 Port 1.5"

1шт.

3

05401790

MANIFOLD

13 Port 1.5"

1шт.

4

05401724

MANIFOLD

Cover

1шт.

5

05401650

CLAMP

Assembly

1шт.

6

33607110

1.5" Tube CC Tuff-One Dry Knife

1шт.

6

33607130

KNIFE

Strip Till, Dry & NH3 Combination

1шт.

8

C1026796

TUBE

2" Diffuser (6 & 8 Row Only)

1шт.

9

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

Gear (12 Row Only)

24шт.

9

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

Gear (8 Row)

1шт.

9

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

Gear (6 Row Only)

1шт.

10

30007032

CABLE TIE

CABLE STRAP 30" Hose Tie

1шт.

11

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

NC.

4шт.

12

113-2295

BOLT,Hex, 3/8" - 16 x 1", SST

N C

8шт.

13

232-4146

NUT,3/8"-16, GC

NC.

4шт.

14

14090608

SPECIAL NUT

3/8" NC Hex., Stainless

8шт.

15

01410150

HOSE

1-1/2" I.D. Hose For 12 Port Manifold

1шт.

15

01410160

2" ID. For 8 Port Manifold

1шт.

15

25740100

2-1/2" I.D. For 6 Port Manifold

1шт.

16

05401769

ELBOW

1-1/2"

1шт.

16

05401771

ELBOW

2"

1шт.

16

05401773

2-1/2"

1шт.

17

05401660

CLAMP

1-1/2"

1шт.

17

05401662

CLAMP

2"

1шт.

17

C1013060

2-1/2"

1шт.

18

05401767

2" Adaptor

1шт.

19

05401765

TUBE

1-1/2" Diffuser

1шт.

20

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

28 Worm Gear (1-1/2")

1шт.

21

05401766

1-1/2" Adaptor

1шт.

22

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

Gear (2")

1шт.

23

214-1448

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

Gear (2-1/2")

1шт.

24

05401763

1-1/2" x 6"

1шт.

25

05401764

2"x 6"

1шт.
