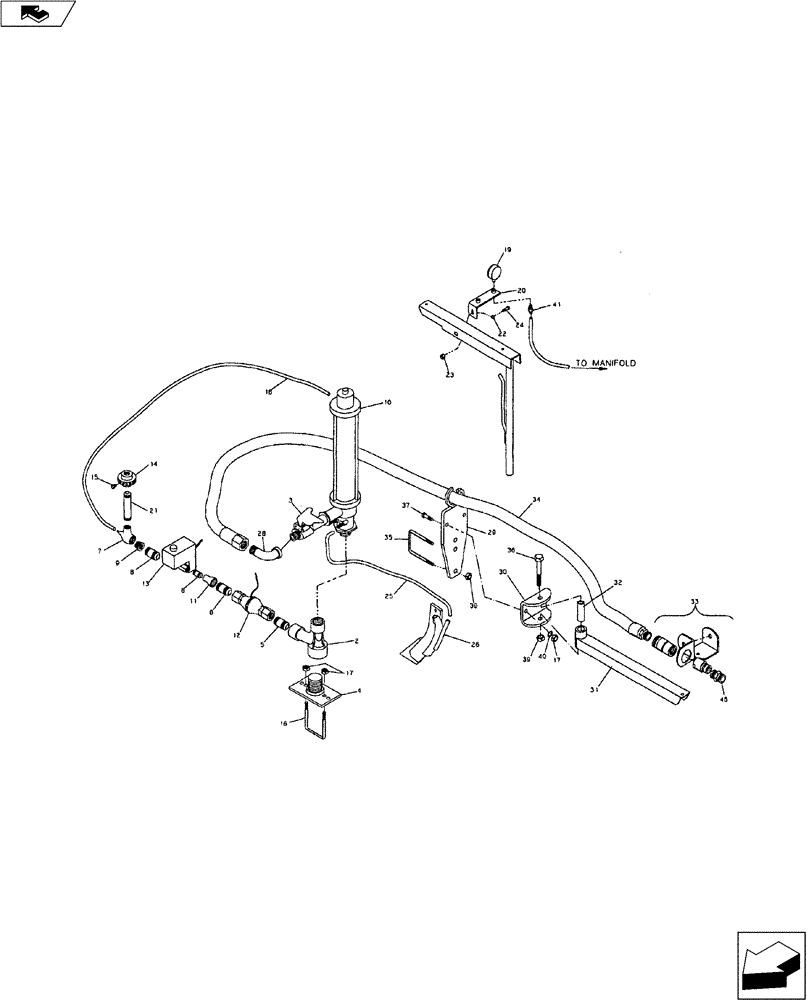

Запчасти Case IH 9000 (75.120.01) - MID-TECH NH3 CONTROL SYSTEM W/PLUMBING FOR SINGLE MANIFOLD (75) - SOIL PREPARATION

1

27701220

COUPLING

NH, Plumbing Kit, Includes Item 2-10 (Not Shown)

1шт.

2

27701225

Sweep Elbow Mtg. Adapter

1шт.

3

27701222

Manual ON/OFF Valve

1шт.

4

27701224

Mounting Plate

1шт.

5

15011256

1-1/4" x 4" Nipple

1шт.

6

15011251

1-1/4" x 3" Nipple

1шт.

7

NSS

NOT SOLD SEPARAT

Reducer Tee

1шт.

8

NSS

NOT SOLD SEPARAT

1" Nipple

1шт.

9

15031259

ADAPTER

1" x 1-1/4" Reducer Bushing

1шт.

10

NSS

NOT SOLD SEPARAT

Continental Equalizer

1шт.

11

NSS

NOT SOLD SEPARAT

Reducer Coupler

1шт.

12

27701231

NH3 Flow Meter

1шт.

13

27701201

NH3 Flow Control Valve

1шт.

14

34199024

VENT MANIFOLD

14 Port

1шт.

15

15020250

PLUG

1/4" Pipe

9шт.

16

16310050

U-BOLT

5/8" x 4" x 8"

1шт.

17

425-1010

NUT,5/8"-11, G5

NC

2шт.

18

NSS

NOT SOLD SEPARAT

A.A. Hose, 1/2"

1шт.

19

34599060

GAUGE

A.A.

1шт.

20

04681830

BRACKET

Gauge

1шт.

21

15011011

FITTING

1" NPT x 8" Nipple

1шт.

22

495-21044

WASHER,3/8"

Flat

1шт.

23

425-106

NUT,3/8"-16, Cl 5

NC

1шт.

24

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

NC

1шт.

25

25631204

3/4" A.A. Hose

2шт.

26

27701226

Weld on Vapor Tube

2шт.

28

15001252

1-1/4" Street Elbow

1шт.

29

09662380

BRACKET

Weldment

1шт.

30

04660320

BAR ASSY.

Bracket

1шт.

31

04660300

MOUNTING PARTS

Extension Pivot

1шт.

32

04660340

TUBE,0.81" ID, 1.25" OD

Pivot Tube

1шт.

33

02600040

FITTING

Quick Coupler Assembly

1шт.

34

25675820

HOSE,1.25" ID x 82.00"

1шт.

35

16312240

U-BOLT

3/4" x 6"

1шт.

36

413-1296

BOLT,Hex, 3/4" - 10 x 6", Gr 5

1шт.

37

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

39

425-1012

NUT,3/4"-10, G5

2шт.

40

492-11062

BEARING WASHER,5/8"

2шт.

41

15040251

HYD CONNECTOR

1/4" NPT x 3/8" Hose Barb

1шт.

42

15081006

COUPLING

1" Sivel Pipe (Not Shown)

2шт.

43

15051003

TEE

1" x 1" x 1/4" Pipe (Not Shown)

1шт.

44

15011000

FITTING

1" NPT x 1-1/2" Nipple (Not Shown)

1шт.

45

15051001

1" NPT (Not Shown)

1шт.

46

34314100

FITTING

1-3/4" ACME x 1-1/4" NPTM Adaptor

1шт.
