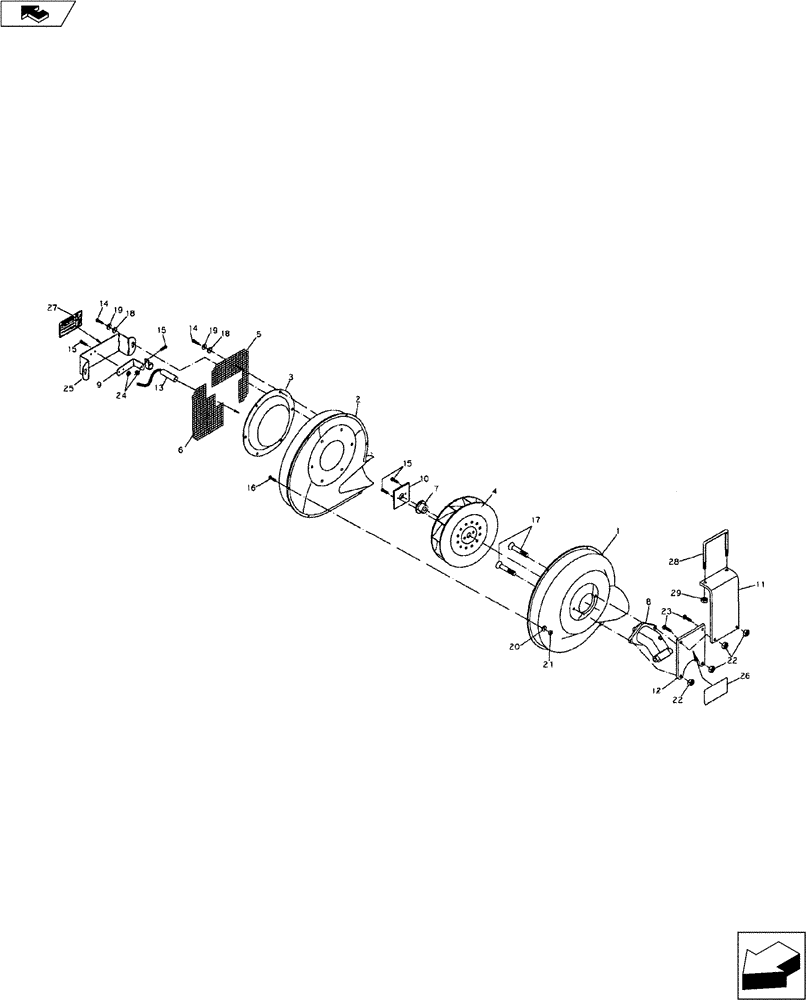

Запчасти Case IH 9000 (75.100.03) - FAN BREAKDOWN (75) - SOIL PREPARATION

1

05401811

CASTING

Bearing Plate Casting

1шт.

2

05401812

CASTING

Inlet Casting

1шт.

3

05401813

BELL

Bell Inlet

1шт.

4

05401814

HOUSING

HE Rotor Assembly

1шт.

5

05401826

Fan Guard

1шт.

6

05401827

Fan Guard

1шт.

7

05401816

BUSHING

H Bushing 20 mm

1шт.

8

25202601

HYDROSTATIC MOTOR

Hydraulic Motor (Rexroth)

1шт.

8

25822602

SEAL

Seal Kit (Rexroth Motor)

1шт.

9

05401825

Fan RPM Bracket

1шт.

10

05401821

Flat

1шт.

11

05402160

Fan Mount

1шт.

12

05402170

Fan Mounting Bracket, Includes Item Ref. 26

1шт.

13

27701103

SENSOR

Sensor W/Mounting Hardware

1шт.

14

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

6шт.

15

NSS

NOT SOLD SEPARAT

1/4" x 1" Hex., Bolt

2шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

17

05401817

1/2" x 2-1/2" Flat Head Socket Bolt

2шт.

18

495-21031

WASHER,1/4"

Flat

6шт.

19

NSS

NOT SOLD SEPARAT

1/4" Lock Washer

6шт.

20

492-11031

LOCK WASHER,5/16"

6шт.

21

425-105

NUT,5/16"-18, G5

NC

6шт.

22

231-4248

NUT,1/2"-13, GB

4шт.

23

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

25

05401822

Bracket

1шт.

26

18534282

WARNING DECAL

Warning Sign

1шт.

27

18534334

Warning Sign

1шт.

28

16310050

U-BOLT

U-bolt

1шт.

29

232-41410

LOCK NUT,5/8"-11, GC

Stover

2шт.
